Introduction
This report is conducted by the Prisma independent risk and research team operated by Llama Risk as part of a series on LSD collateral risk assessments. In this report, we examine Stader’s ETHx.
This report will comprehensively cover all relevant risk factors of Stader ETHx for collateral onboarding. Our approach involves both quantitative and qualitative analysis to help determine whether the collateral can be safely onboarded and to what extent there should be restrictions on the protocol’s exposure to the collateral.
As Prisma will be onboarding a variety of LSDs as collateral, our review involves comparative analysis to determine suitability as collateral. Risks are categorized into:
Market Risk - risks related to market liquidity and volatility
Technology Risk - risks related to smart contracts, dependencies, and oracle price feeds
Counterparty Risk - risks related to governance, centralization vectors, and legal/regulatory considerations
These risk categories will be summarized in the final section of this report and are meant to assist tokenholders in their determination around ETHx onboarding and setting suitable parameters.
Section 1: Protocol Fundamentals
This section addresses the fundamentals of the proposed collateral. It is essential to convey (1) the value proposition of ETHx, and (2) the overall architecture of the protocol. This section contains descriptive elements that cannot be quantified and act as a descriptive introduction to the collateral.
This section is divided into 2 sub-sections:
1.1: Description of the Protocol
1.2: System Architecture
1.1 Description of the Protocol
Key metrics (as of November 24th, 2023)
Circulating Supply: 37,851
Staked Tokens: 41,904
Number of validators: 1057
Number of operators (mainnet): 195
Market share of ETH staked: 0.00424% (via data from DefiLlama)
Market share of LSDs: 0.37%
With the top three ETH staking entities accounting for over 90% of the LSD market by TVL, Stader aims to address the high concentration of staking power. Stader also addresses the challenge of permissionless node operation.

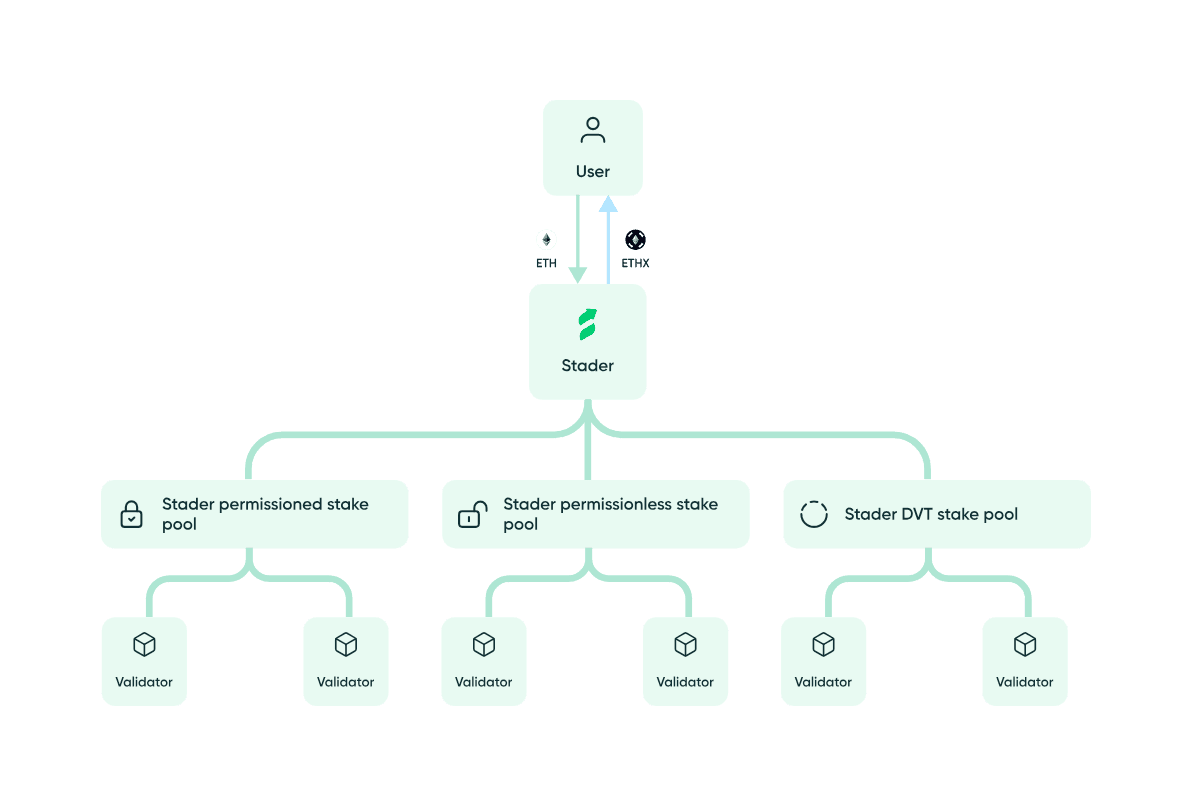

ETHx employs a multi-pool architecture that features both a permissionless pool for open node operation and a permissioned pool with vetted validators, ensuring consistent performance in phase I. In phase II, ETHx plans to pioneer dedicated stake pools that leverage Distributed Validator Technology (DVT) as a part of its forward-looking approach to technology adoption.

Source: Stader - Docs
1.1.1 Underlying Collateral
ETHx offers liquid ETH staking, providing users the dual benefit of earning staking rewards while maintaining liquidity. User ETH deposits are exchanged for ETHx tokens, creating a liquid representation of staked assets. The staked ETH is then channeled to the ETHx Node Network, where a decentralized network of nodes perform vital validation tasks, generating staking rewards. This accrued value, reflected in the increasing exchange rate of ETHx, allows users to directly earn staking rewards.
1.1.2 Yield Accrual Mechanism
Stader’s liquid staking token, ETHx, uses an oracle contract that reflects an increase in ETHx value as staking rewards, MEV and tips accrue to user’s staked ETH. This oraclized model is easier to integrate with the wider Defi ecosystem compared with rebasing tokens.

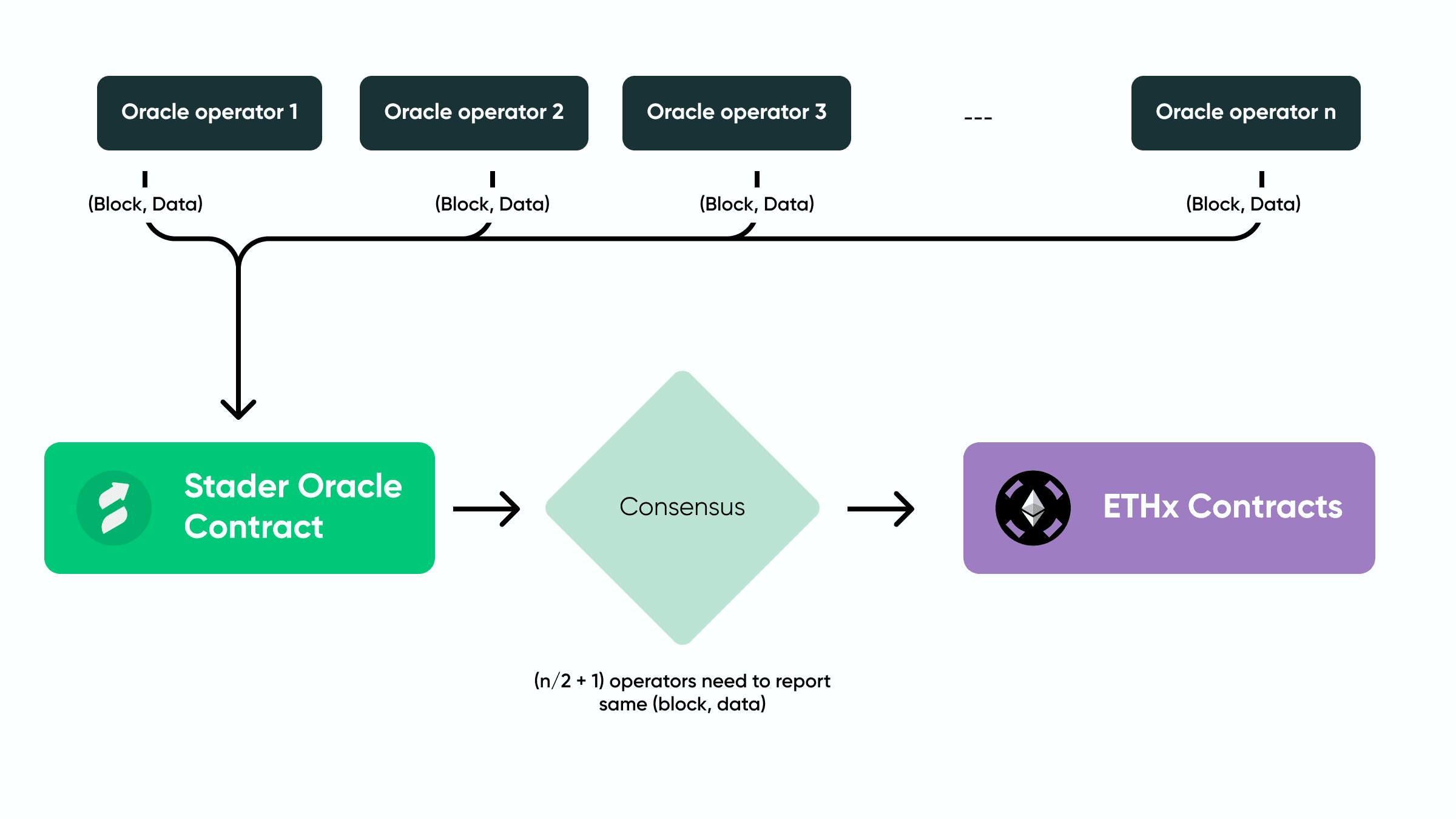

Stader relies on a whitelisted Oracle Committee that relay ETH TVL in the system to the oracle contract for the purpose of distributing yield. There is a rate and frequency limit imposed on the contract.
Validators perform validation tasks and rewards accrue to their pubkey addresses on the beacon chain. A distinct withdrawal mechanism, the ValidatorWithdrawalVault
, ensures equitable distribution among Stakers, Node Operators, and the Stader DAO Treasury. This mechanism is applied universally and maintains the collateral and commissions structure for permissionless and permissioned pool validators.
Moving to the execution layer, MEV and priority fees become relevant for node operators. MEV, an operator’s ability to optimize transactions within a block, is a mandated component for all Stader node operators. Meanwhile, priority fees represent compensation for batching certain transactions in a block. A socializing pool facilitates consistent rewards, offering operators a share based on performance and the number of validators operated. Permissionless operators directly access a portion of execution layer rewards, complemented by a commission on the staked ETH. Permissioned operators earn a percentage commission on their entire staked amount.
1.1.3 Provider Fee
There is a 10% fee on both consensus and execution layer rewards that is equally distributed between node operators and Stader’s Treasury.
1.1.4 Node Operator Set
Empowering smaller node operators is a focus for ETHx which is achieved through Stader’s permissionless pool. This pool allows anyone with 4.4 ETH worth of collateral to operate a node. By depositing 4 ETH and between 0.4 and 8 ETH worth of Stader governance token (SD) per validator, they can join the permissionless pool.
In contrast, the permissioned pool onboards select operators with a proven history of node operation, requiring no collateral and subject to KYC checks and a Stader DAO whitelist process via Snapshot.
To ensure a secure onboarding process, ETHx addresses potential exploit vectors.
- Invalid key data submission during validator registration triggers Stader to deposit 1 ETH from the operator’s security bond to the ETH deposit contract. Although unrecoverable in case of incorrect data, this safeguards Staker’s ETH, with the operator still receiving 3 ETH back.
- Additionally, the protocol combats frontrunning by splitting the 32 ETH deposit into two steps. Any attempt to frontrun in the permissionless pool results in the loss of the operator’s 1 ETH, with the remaining 3 ETH penalized and transferred to the Stader Insurance Fund. For permissioned pool validators, a front-run leads to a transfer of 1 ETH from the Stader Insurance Pool to compensate for the loss, ensuring a fair and secure onboarding process for all operators.
1.1.5 Validator Selection
Validator selection, crucial for fairness and decentralization, uses a first-come-first-served approach for permissionless pools and round-robin for permissioned pools. Both aim for equitable distribution of staked ETH.
Stader efficiently distributes stakers’ ETH, provisioning 28 ETH for permissionless pools and 32 ETH for permissioned pools. It ensures thorough security checks for validators before distribution, penalizing abnormal behavior. After activation on the Beacon Chain, validators are expected to maintain uptime and uphold execution layer rewards, with penalties enforced for deviations.
In summary, Stader’s deposit workflow seamlessly integrates various pools, implements effective deposit limits, allocates stake, selects validators, and ensures secure and efficient distribution of staker assets to Beacon Chain validators.
1.1.6 Governance Model
There is a governance process involved with key aspects of the protocol, including contract upgrades, on/offboarding node operators, and parameter changes.
Draft proposals in the Stader ecosystem typically undergo a three-day discussion period on the Stader Forum, followed by a four-day off-chain voting period on Snapshot. Voting power in the system is granted to holders of the Stader governance token (SD). Voting results are determined by a simple majority and a 1m SD quorum requirement. Once a vote passes, the team executes the proposal with the required actions through their multisig composed of several independent members, as disclosed in the docs.
For the future, Stader aims to transition towards a complete on-chain governance, enabling SD and ETHx holders to actively propose and implement protocol changes.
1.2 System Architecture
1.2.1 Network Architecture Overview
At its core is the StaderStakePoolManager, the exclusive ETHx minter, facilitating user interactions for staking and depositing ETH. This contract interacts with ETHx to mint tokens at the prevailing exchange rate.
The PoolSelector orchestrates the validator selection process, incorporating pool weights to determine selections, ensuring an organized and efficient validator selection process across both permissioned and permissionless pools. PermissionedPools and PermissionlessPools implement distinct validator selection logic, distributing validators among operators and managing deposits systematically.
The PermissionedNodeRegistry is a critical mapping tool, systematically tracking whitelisted permissioned operators and their associated details. The PermissionedPool registers validators on the beacon chain, allocating 1 ETH for selected validators and managing the remaining 31 ETH until key validation is confirmed.
The VaultFactory Contract deploys withdraw vault contracts for each validator, uniquely identified, while the PermissionlessNodeRegistry manages Operator and Validator Structs, deposit queues, and ETH collateral. The PermissionlessPool Contract receives funds from the Stake Pool Manager, executing deposit transactions and maintaining comprehensive pool statistics.
Contracts like the SocializingPool, WithdrawalVault, Penalty, PoolFactory, and StaderOracle contribute to MEV reward distribution, on-demand reward withdrawals, penalty enforcement, and secure market data feeds, respectively.
In the withdrawal and settlement processes, the UserWithdrawalManager handles user-initiated withdrawals, employing preventive measures against sandwich attacks. Simultaneously, the ValidatorWithdrawalVault manages the final 32 ETH from a successful node exit, settling funds through the SettleFunds
method, involving Staker, Node Operator, and Stader Treasury, ensuring transparent handling of ETHx token burning and validator fund settlements. This comprehensive architecture ensures a secure and efficient operation of the Stader ecosystem.

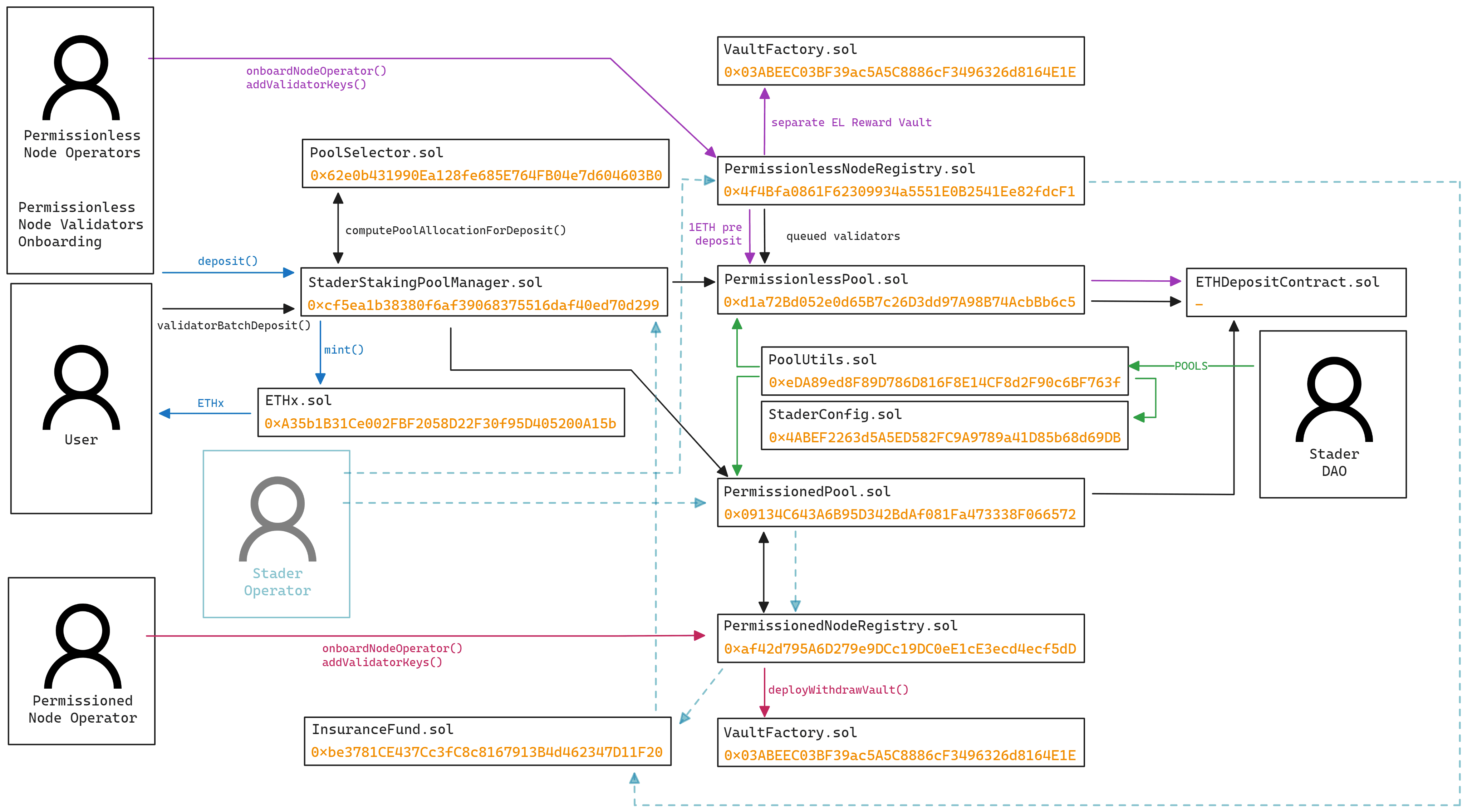

1.2.2 Architecture Diagram

The following Miro board covers the contracts and work flows involved with all system mechanics, including:
- User Deposit Workflow
- Permissioned Operator and Validator Workflow
- Permissionless Operator and Validator Workflow
- Deposit Workflow
- Exchange Workflow
- MEV Penalty Workflow
- Pool Workflow
- Validator Exit Mechanism
- SD Collateral Onboarding for Permissionless Operators
- Rewards Workflow
- User Withdrawals Workflow
Section 2 Performance Analysis
This section evaluates ETHx from a quantitative perspective. It analyzes token usage and competitive metrics, and accounts for subsidized economic activity.
This section is divided into 3 sub-sections:
2.1: Usage Metrics
2.2: Competitive Analysis Metrics
2.3: Subsidization of Economic Activity
2.1 Usage Metrics
2.1.1 Total Value Locked (TVL)

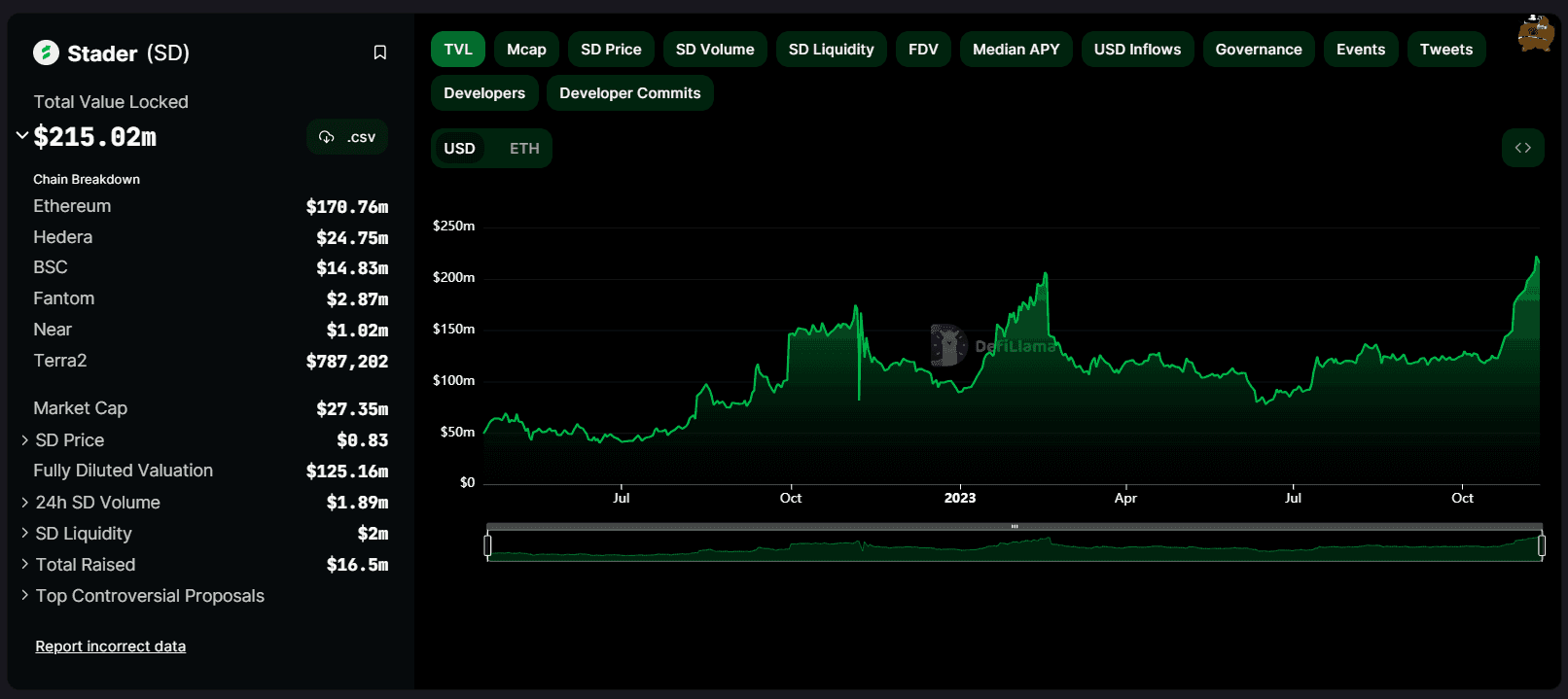

ETHx has experienced steady growth since launch with a large TVL expansion in late October.
For reference, Stader has additional products available on Polygon, Hedera, BSC, Fantom, Near, and Terra2. Note that Polygon has the second highest TVL after Ethereum, but Polygon staking takes place on mainnet and is included under the “Ethereum” category on DeFillama.

Source: DefiLlama - Stader
2.1.2 Transaction Count
ETHx has experienced a daily tx count ranging between 6 and 76 txs daily since August 1st. Average daily tx count has been increasing since mid-September.

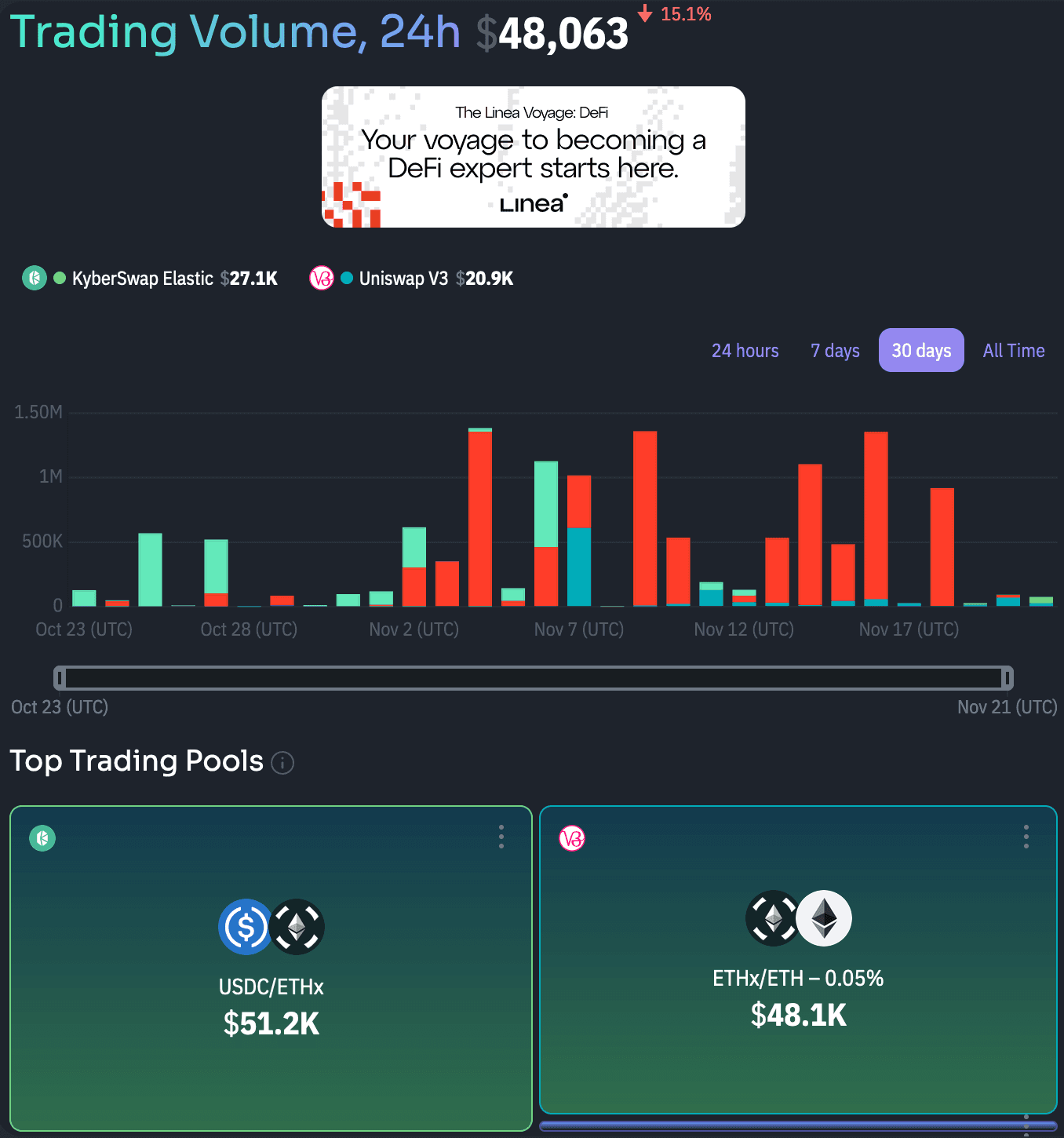

2.1.3 DEX Trading Volume
Historical DEX trading volume is mostly on Curve, KyberSwap, UniV3, and Balancer. Trading volume is irregular, ranging from $1.2k to $3.9m over the past month.

Source: Dex.guru | Date: 10/23/2023 - 11/21/2023
2.1.4 Average Transaction Size
The average tx size has historically been cyclical, ranging from $1,560 to $1,075,633 since August 1st.
2.1.5 Volume to Market Capitalization Ratio
The daily volume to market cap ratio has historically been cyclical, ranging from .011% to 1.74% since August 1st.

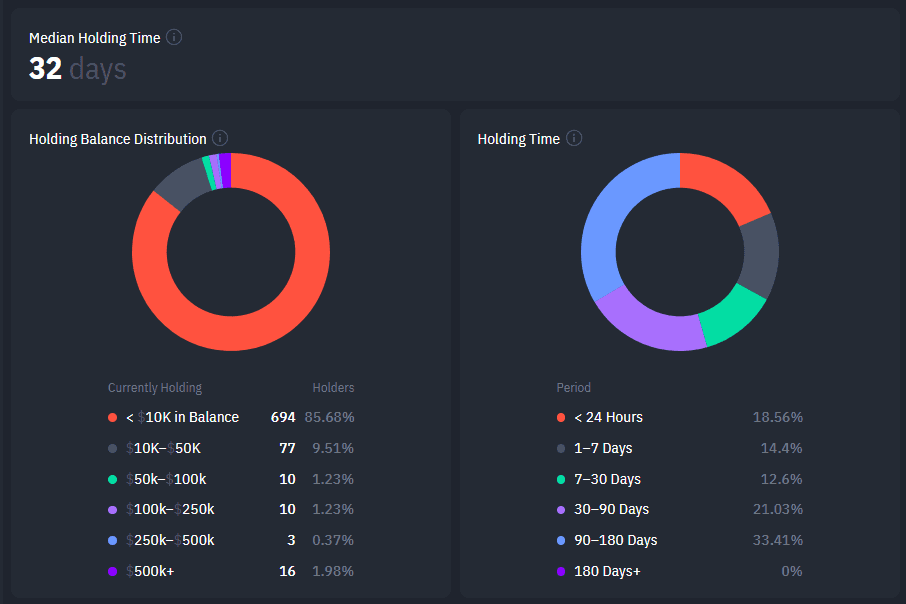

2.1.6 LSD Token Velocity
The average ETHx holding time for current holder addresses is 32 days as of November 15. 1/3 have held ETHx for over 90 days followed by 21% having held for 30-90 days. Note that ETHx has not been live for over 180 days, hence 0% for that category in the chart below.

Source: Dex Guru - ETHx Token Profile | Date: 11/15/2023
2.1.7 Active Addresses/Users

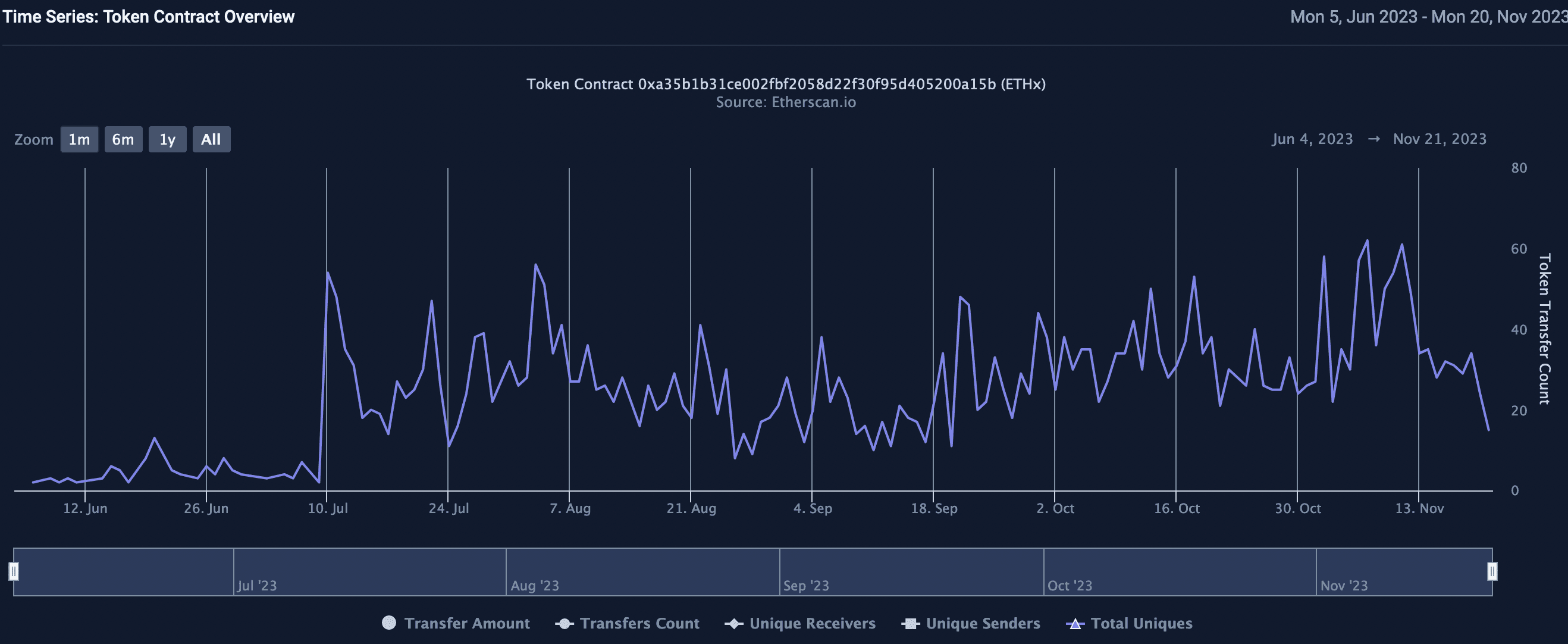

Daily unique addresses involved with token transfer events has overall been increasing. There was a decline from August to September which has since reversed. Since August 1st, the daily unique senders/receivers has ranged from 8 to 62.

Source: Etherscan Analytics - ETHx
2.1.8 User Growth Rate
Addresses holding ETHx has been increasing since inception with a period of stagnation during the month of September followed by a growth spurt in early November.
Weekly user growth: 12.43% (calculated 11/18/2023) Monthly user growth: 33.54% (calculated 11/18/2023)
2.1.9 Integration with Other Protocols

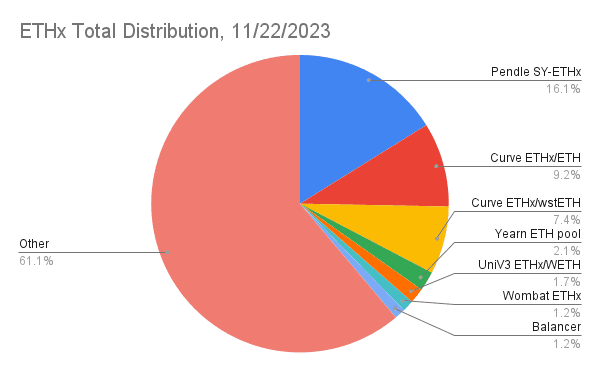

As of 11/22/2023, roughly 1/3 of the ETHx is deployed into DeFi applications. The majority of tokens are held in EOA or multisig wallets.

Source: Etherscan - ETHx | Date: 11/22/2023

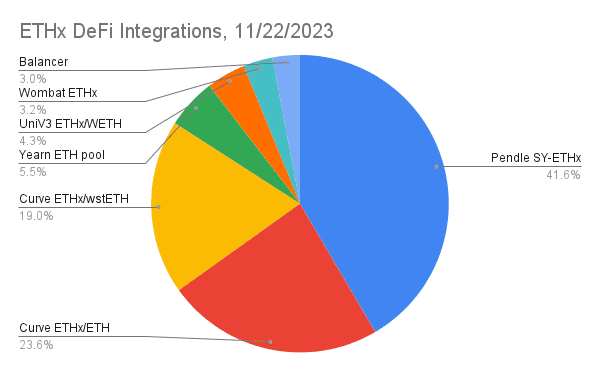

Of the DeFi integrations, most tokens are deposited into Pendle’s yield futures vault and into the Curve ETHx/ETH and ETHx/wstETH pools. The remainder are divided between UniV3, Wombat, and Balancer pools.

Source:Etherscan - ETHx | Date: 11/22/2023

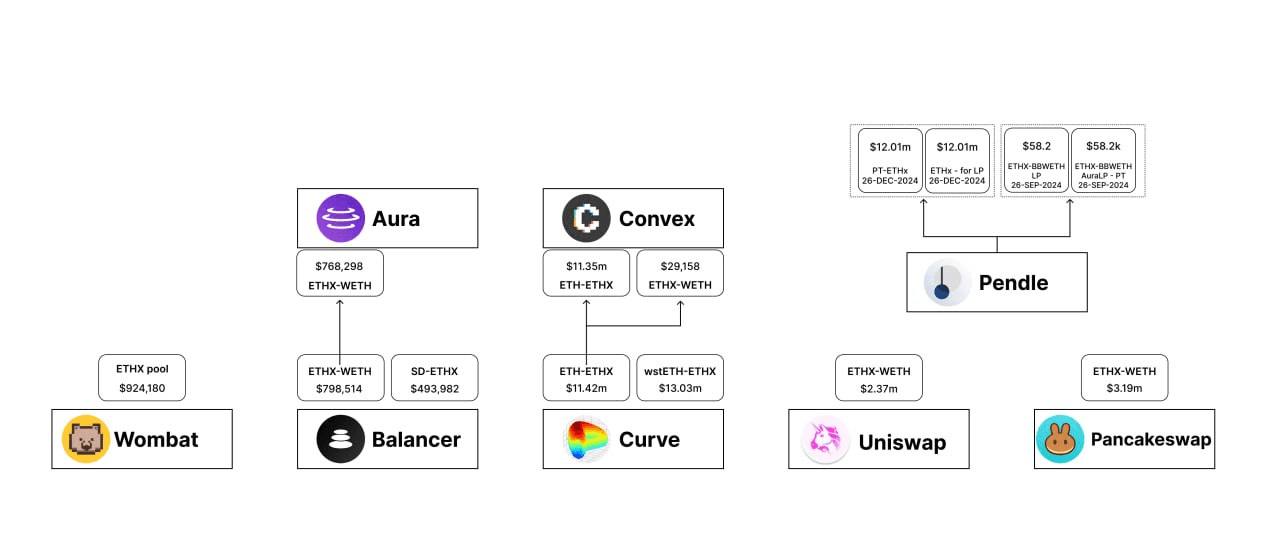

See below a further breakdown of ETHx allocations within the constituent applications:

Source: DefiLlama | Date: 11/15/2023
2.2 Competitive Analysis Metrics
2.2.1 Market Share

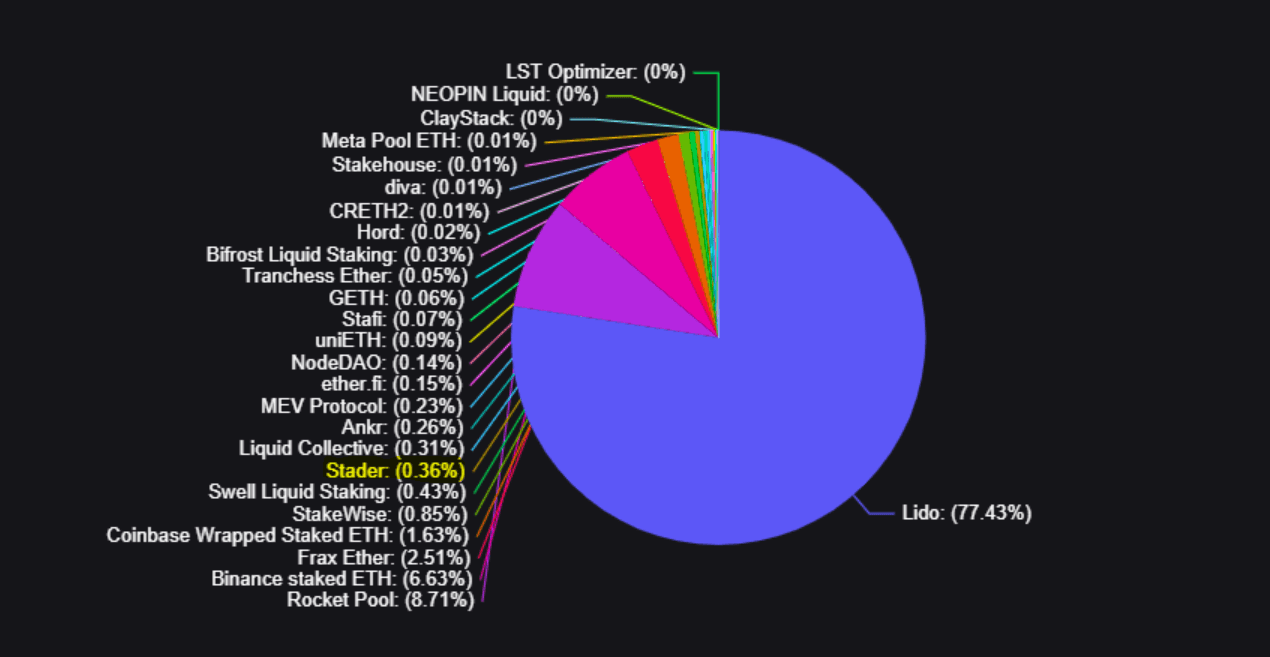

Stader ETHx is relatively new, and currently only makes up 0.36% of the staked ETH market.

Source: DefiLlama | Date: 11/7/2023

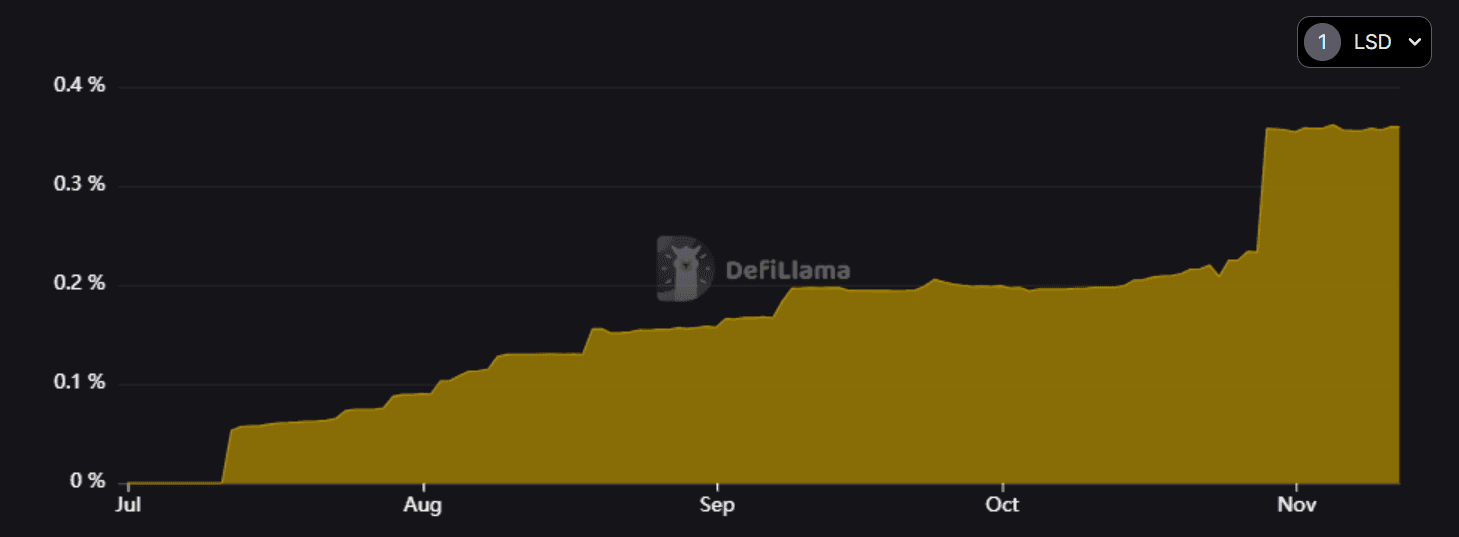

Since its inception, ETHx has grown its overall marketshare, which despite its small size is currently at an ATH.

Source: DefiLlama | Date: 11/7/2023
2.2.2 Trading Volume Share in Total LSD Trading Volume
Compared to the LSD assets previously onboarded to Prisma (wstETH, rETH, sfrxETH, cbETH), ETHx has the lowest daily volume behind frxETH. However, of the tokens that have not yet been onboarded, it shows the highest share of trade volume at the time of the snapshot.
Coin Symbol Price 1h 24h 7d 24h Volume Mkt Cap Lido Staked Ether STETH $2,050.80 0.10% -0.40% 8.60% $12,250,497.00 $18,373,958,885 Rocket Pool ETH RETH $2,237.41 0.00% -0.30% 8.10% $8,252,604.00 $1,198,884,692 Frax Ether FRXETH $2,047.13 0.00% -0.70% 8.50% $2,079,521.00 $594,801,706 Staked Frax Ether SFRXETH $2,180.21 0.00% -0.50% 8.60% $380,705.00 $447,671,234 Coinbase Wrapped Staked ETH CBETH $2,164.80 0.20% -0.10% 8.90% $2,682,152.00 $408,439,442 sETH2 SETH2 $2,033.98 0.00% -0.50% 8.60% $75,108.06 $174,844,833 Stader ETHx ETHX $2,068.96 -0.10% -0.30% 8.80% $237,783.00 $77,459,737 Ankr Staked ETH ANKRETH $2,327.16 0.00% -0.70% 8.40% $14,072.85 $62,255,588 rETH2 RETH2 $2,028.91 0.10% -0.40% 8.60% $44,096.44 $15,847,277 StaFi Staked ETH RETH $2,185.24 -0.10% -0.40% 11.40% $79.58 - Liquid Staked ETH LSETH $2,111.64 0.00% -0.50% 8.70% $7,219.00 -
Source: CoinGecko | Date: 11/7/2023
2.2.3 Protocol Staking Yield
The STYETH index measures the average daily ETH staking yield. It is referenced against the daily yields on ETHx as reported by DeFiLlama. ETHx yields display much greater volatility and occasionally report 0 daily yield.

Source: DefiLlama and CompassFT
Stader’s self-reported yield calculation formula is: Yield = ((ER today - ER yesterday) / ER yesterday) * 365. The discrepancy arises because the Stader oracle committee’s consensus process for updating the ER is asynchronous and sometimes extends beyond 24 hours. This delay leads to platforms like DeFiLama, which take daily snapshots at specific times, reporting yield as zero on certain days.
For example, the last ER update was on October 6, 2023 at 11:07:11 AM UTC. The next consensus was reached on October 8, 2023 at 5:25:11 AM UTC. Due to this gap, the yield reported on the 8th was inaccurately high, at 6.4%, which is more than double that of the 6th October.
To address this, Stader is collaborating with their oracle partners to increase the frequency of oracle operations, aiming for quicker consensus achievement. This should help provide more accurate and timely yield data.
2.2.4 Slashing Rate
ETHx has not yet been integrated into Rated.network to more conveniently access this data. The team is actively working on this and intend for this information to be available by mid-December.
Currently, the Stader team is monitoring the performance of all validators and operators using their in-house monitoring system. For a detailed view of the ETHx validators’ performance, please refer to this spreadsheet.
To date, ETHx validators have had no instances of slashing. This information is recorded and can be verified in column R under the “Permissionless Validators Performance” and “Permissioned Validators Performance” tabs in the above spreadsheet.
Note that ETHx stakers are protected against slashing as permissionless Node operators bond 4 Eth and at least 0.4 Eth worth of SD as collateral.
2.3 Subsidization of Economic Activity
2.3.1 Existence of an Incentive Program

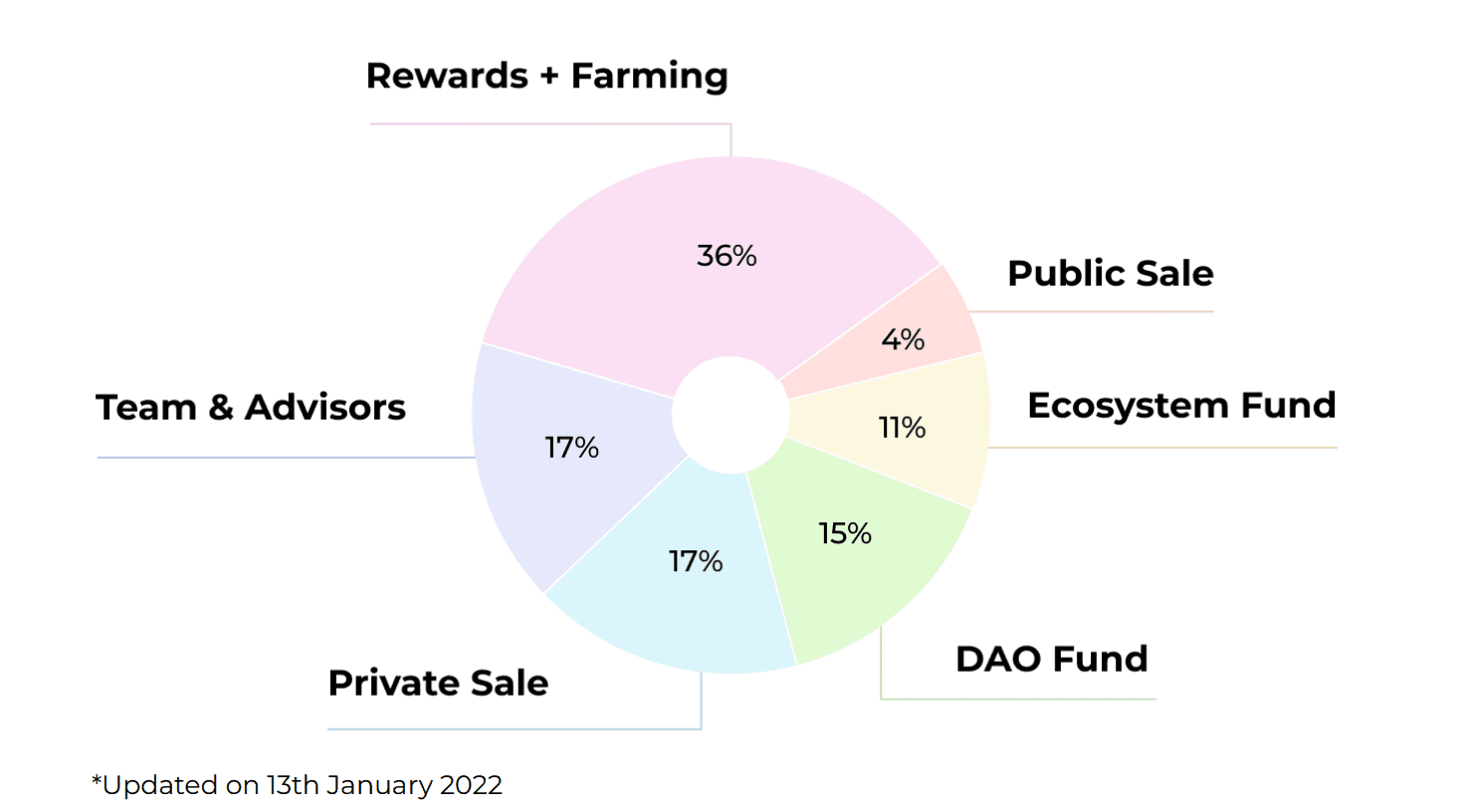

Stader (SD) is the utility and governance token of the Stader ecosystem. It is an ERC-20 token with a total supply of 150m tokens. SD is used for incentives and at the moment rewards Stader liquidity providers and ETHx Node Operators for locking SD tokens. (source). The incentive program for ETHx Node Operators also includes ETHx Boosted Commission, a 13,000 SD top-up pool for Rolling Beta Node Operators and $65,000 reward pool for AVADO users (AVADO -mini-pc for running staking nodes). (source)
ETHx Stakers
Stader Incentive Program for ETHx stakers was dedicated to participants who staked their Ethereum tokens with Stader during their launch month (from July 10, 2023, to August 9, 2023 UTC). The incentive program offers a 50% boost on rewards (in the form of Stader governance token SD) without any upper limit on the stake amount. ETHx staked in LPs is also eligible for the reward boost. The rewards, calculated daily, were aggregated for the entire duration of the launch month and were provided as an air-drop after the launch month.
The rewards are calculated on a daily basis by enhancing the base staking rate by 50% (after accounting for a 10% commission).
ETHx Node Operator
For eligibility in the boosted commission program, node operators must have joined ETHx within a month of launch, register a node on the Stader mainnet network, and add four validators within the launch month. The enhanced commission, applicable for the first year post-launch, will be disbursed monthly as SD rewards based on monthly performance. Notably, the boost is exclusive to the initial four validators per operator spun during the launch month, with any additional validators incurring a standard 5% commission.
Avado is Stader’s plug-and-play PowerUp partner. The partnership aims to lower the technical barriers of running an ETH node. A healthy prize pool of $65000 has also been apportioned to incentivize ETHx node operators using Avado machines.
2.3.2 Size of the Incentive Program in USD

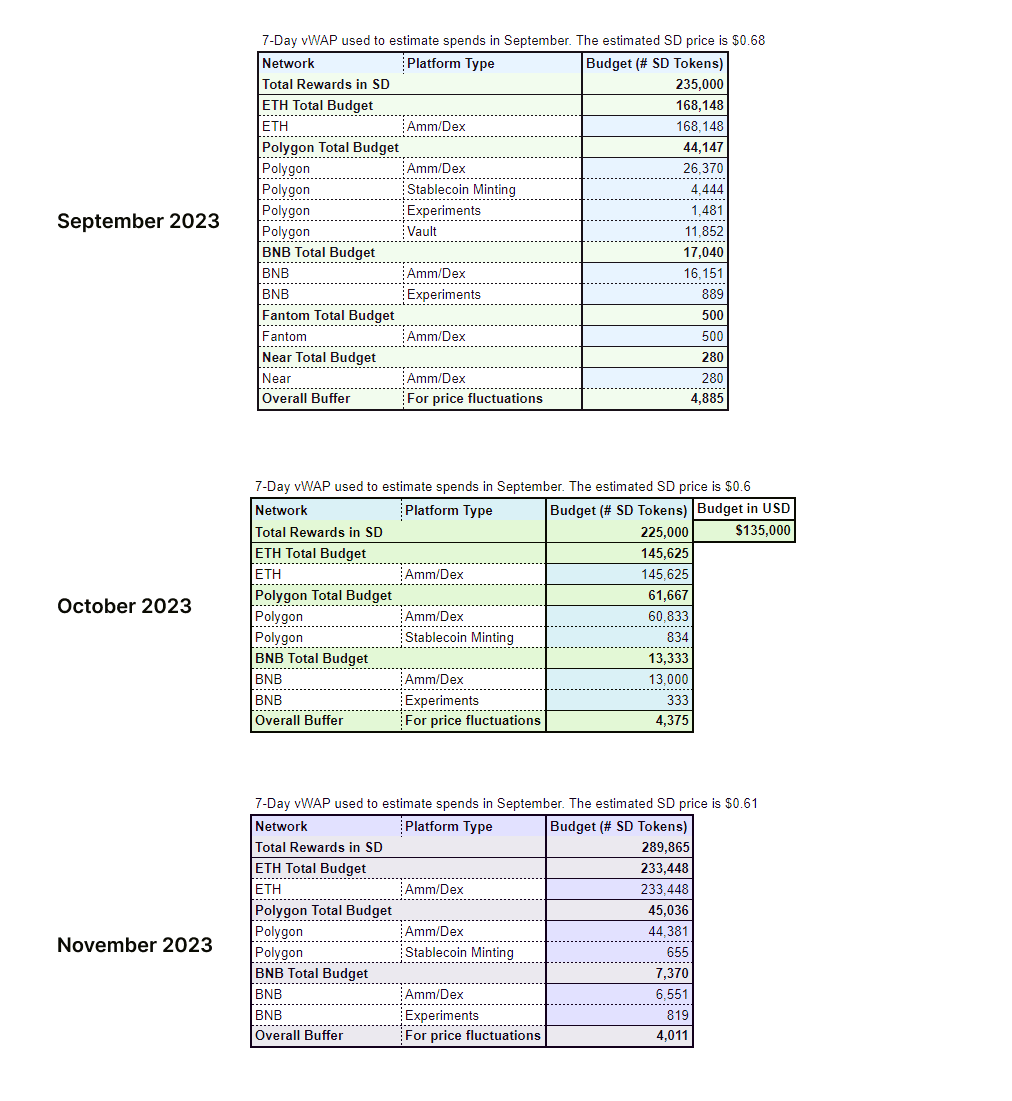

The SD token incentives emission program is updated on a monthly basis. The image below shows SD incentives data and distribution over supported chains for the last 3 months (screenshot below):

Source: Stader Governance Forum

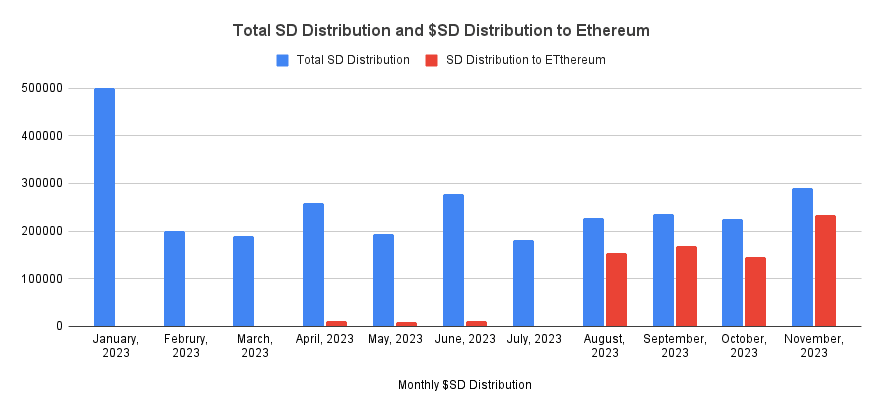

The bar chart below shows the total SD incentive distribution for the last 11 months (blue bar) and the share of total incentives distributed to the Ethereum Network (red bar).

Source: Stader Governance Forum
In total, 2,779,657 $SD tokens have been distributed over 11 months in 2023, of which 734,756 SD were distributed to ETHx on the Ethereum Network.
Section 3 Market Risk
This section addresses the ease of liquidation based on historical market conditions. It seeks to clarify (1) the Liquid Staking Basis & Volatility of ETHx, and (2) the liquidity profile of the collateral. Market risk refers to the potential for financial losses resulting from adverse changes in market conditions.
This section is divided into 2 sub-sections:
3.1: Volatility Analysis
3.2: Liquidity Analysis
3.1 Volatility Analysis
3.1.1 Liquid Staking Basis (LSB)
Note: The “Liquid Staking Basis & Volatility Analysis” section is based on data provided by the CoinGecko Terminal API. We used OHLCV (Open, High, Low, Close, Volume) daily data for the analysis.

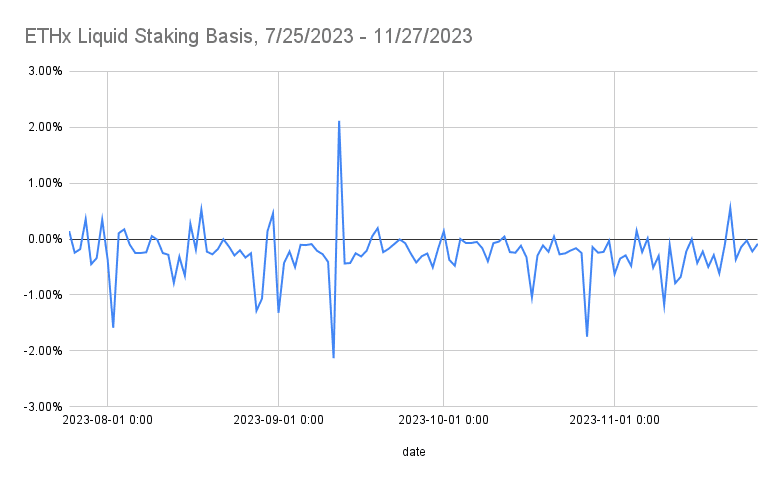

The LSB (Liquid Staking Basis) represents the price difference between ETHx (liquid staking token) and its underlying asset, ETH. It measures the deviation of the ETHx price from the ETH price.

Source: Coingecko Historical Data
The LSB values range from negative to positive, indicating periods when ETHx traded at a discount or premium relative to ETH. The overall trend shows that ETHx has generally traded at a slight discount to its underlying ETH.

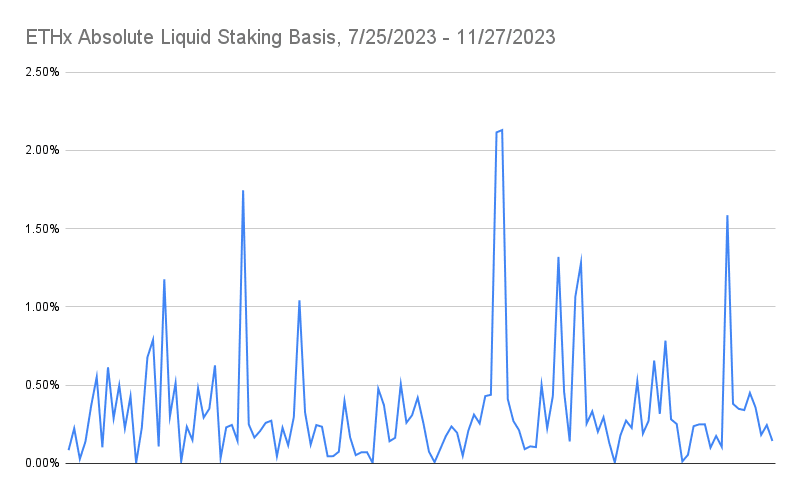

Absolute Liquid Staking Basis (LSB_abs)
The LSB_abs represents the absolute value of the LSB, indicating the magnitude of the price difference between ETHx and ETH without considering the direction (premium or discount).

Source: Coingecko Historical Data
This Dune query additionally demonstrates the methodology to derive the LSB.

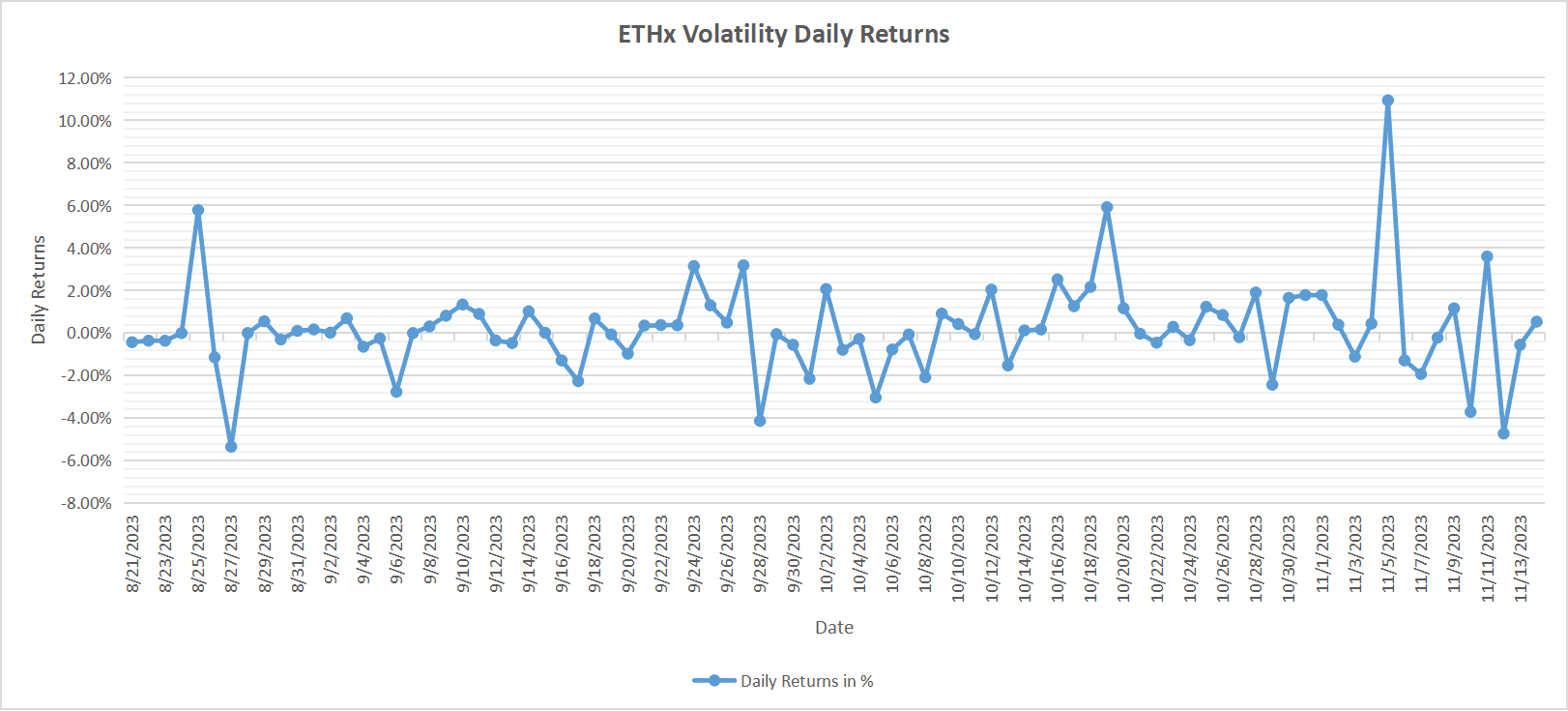

3.1.2 LSD Volatility
The Volatility chart below shows the ETHx daily returns compared to the previous day snapshot price according to Coingecko data.

Source: CoinGecko

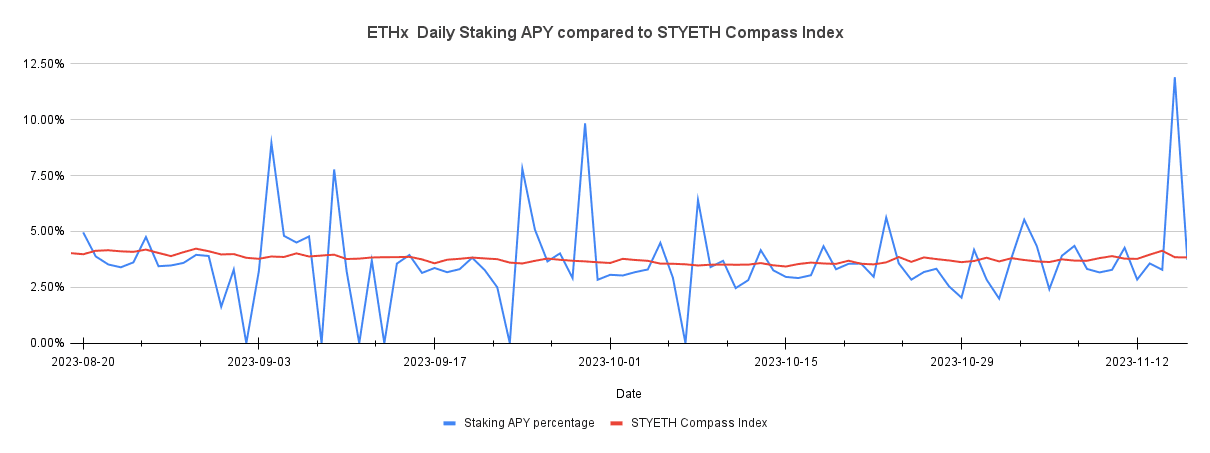

3.1.3 Yield Volatility

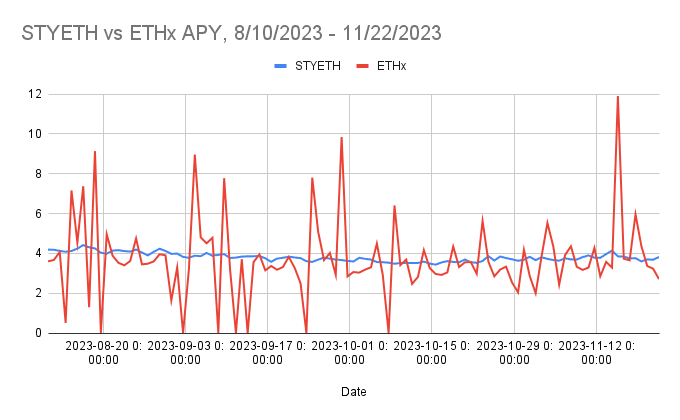

Yield volatility is calculated from DeFillama data Median APY. According to available data, ETHx had 0 APY on 6 days. The data is compared against the STYETH ETH staking yield index data.
As explained in section 2.2.3 on ETHx staking yield, the yield volatility is due to asynchronous harvesting by the oracle committee that sometimes extends beyond 24 hours. The Stader team is working with the oracle committee to increase the frequency of oracle operations to provide more accurate and timely data.

Source: DefiLlama and STYETH Compass Index
Over the time period, ETHx exhibited an average APY 0.14% lower than the index.
ETHx STYETH Average 3.63% 3.77% Min 0.00% 3.43% Max 11.90% 4.23%
3.2 Liquidity Analysis
3.2.1 Supported DEXs and CEXs

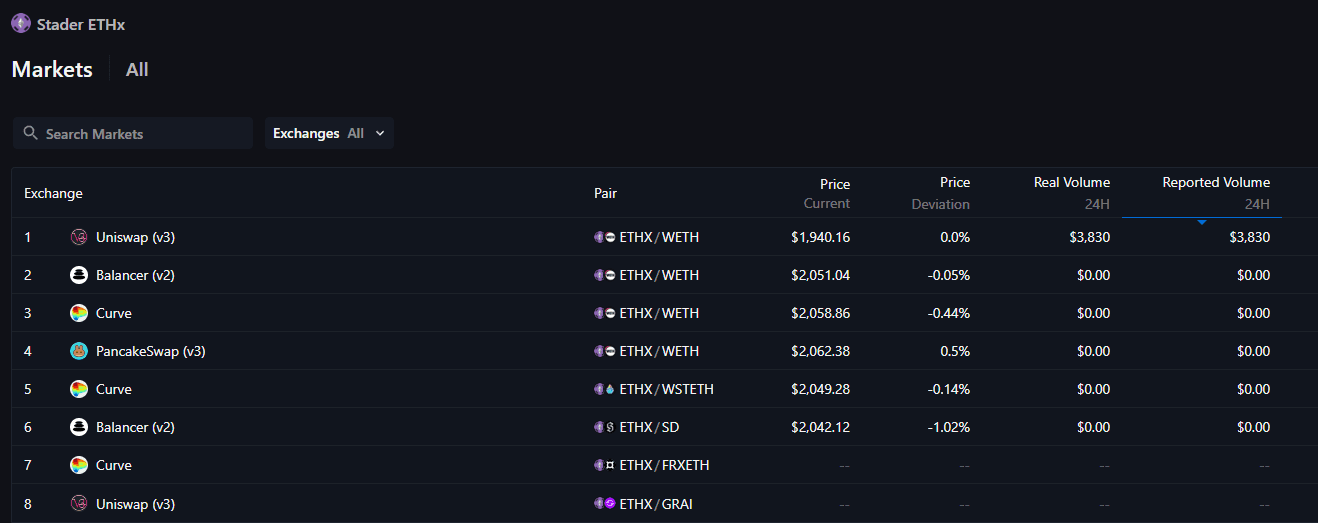

ETHx can be traded on Curve, PancakeSwap, UniswapV3, Balancer, and Wombat DEXs. It is not listed on any CEX venues. Note in the image below that Messari does not track the Wombat exchange, although the pool can be seen on the Wombat app.

Source: Messari | Date: 11/14/2023
3.2.2 LSD Token Total On-chain Liquidity

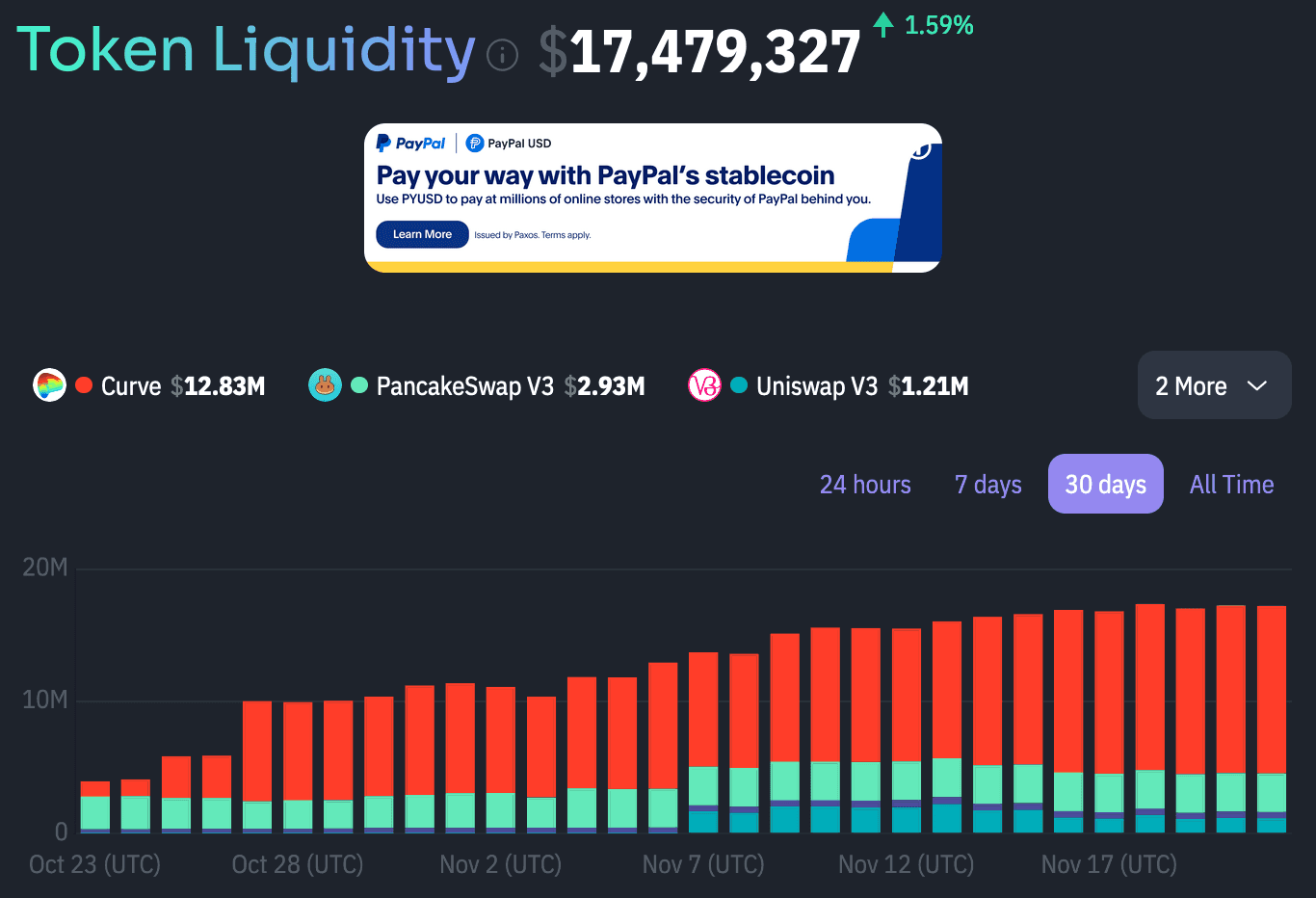

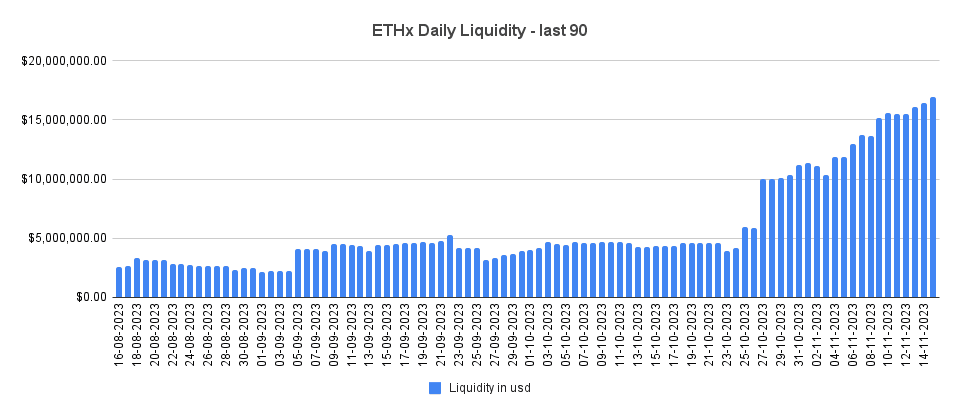

According to DexGuru data (on November 14th, 2023), ETHx total on-chain liquidity on Ethereum is $15,604,044. DexGuru does not calculate the total quantity of tokens in a liquidity pool, but rather the value that they can be swapped for.

Source: DexGuru | Date: 8/16/2023 - 11/14/2023

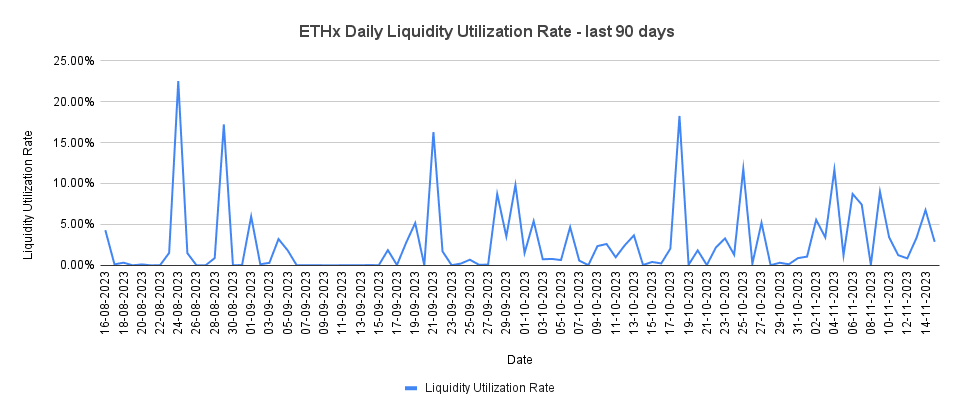

3.2.3 Liquidity Utilization Rate
The liquidity utilization rate takes the liquidity on exchange divided by the daily volume.

Source: DexGuru) | Date: 8/16/2023 - 11/14/2023
The time period produced the following statistics:
Average Liquidity Utilization Rate 2.74% Min Liquidity Utilization Rate 0.00% Max Liquidity Utilization Rate 22.51%
3.2.4 LSD Leverage Ratio
ETHx is not supported as collateral on lending protocols, although it has recently passed a Snapshot temp check on November 23rd for onboarding onto Aave.
3.2.5 Slippage

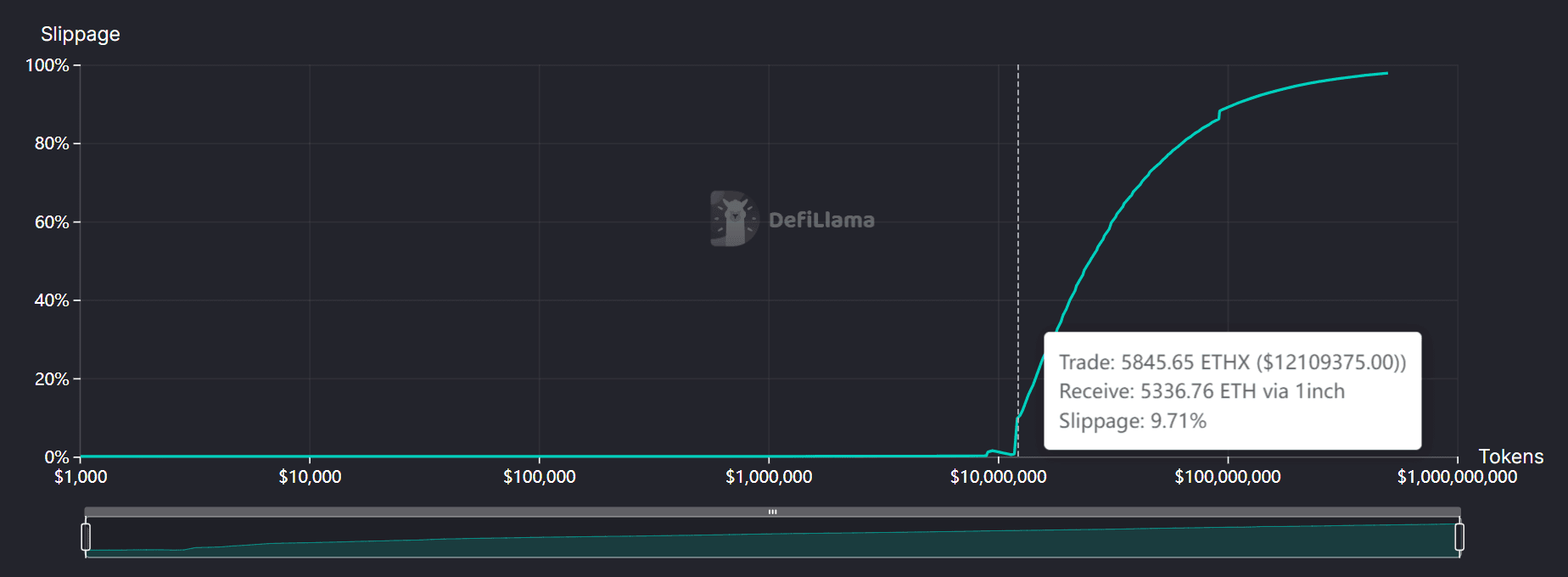

On November 14th, the slippage was 9.71% when 5845.65 ETHx (~$12.1m) is exchanged for ETH. This is high slippage when compared to the previously onboarded LSD tokens prevalent in DeFi (frxETH, stETH, rETH).
cbETH shows 37.28% slippage for the same swap size, although most volume for cbETH takes place on centralized exchange.

Source: DefiLlama - Liquidity Tool | Date: 11/14/2023
As liquidity has substantially improved in the past month, a second snapshot was taken on November 26th. A 5758 xETH (~12.1m) swap size only incurs a 1.49% slippage at this time.

Source: DefiLlama - Liquidity Tool | Date: 11/26/2023
Section 4 Technological Risk
This section addresses the persistence of collateral properties from a technological perspective. It aims to convey, (1) where technological risk arises that can change the fundamental properties of the collateral (e.g. unresolved audit issues), and (2) do any composability/dependency requirements present potential issues (e.g. is a reliable pricefeed oracle available?).
This section is divided into 3 sub-sections:
4.1: Smart Contract Risk
4.2: Product and Layer Composability
4.3: Oracle Pricefeed Availability
4.1 Smart Contract Risk
4.1.1 Protocol Audits
Stader-ETHx has undergone audits conducted by SigmaPrime, Halborn, and Code4rena. The detailed audit reports can be found below:
ETHx Component Audit Report Findings Smart Contracts ETHx Smart Contracts audit by Halborn (July 4) 3 Medium, 5 low, 6 info Smart Contracts ETHx Smart Contracts audit by Sigma Prime (June 1) 3 high, 6 medium, 3 low, 10 info Smart Contracts ETHx Smart Contracts audit by Code4rena (July 19) 1 high, 14 medium, 24 low Stader node - Permissionless ETHx Permissionless Stader node audit by Halborn (June 27) 4 low, 13 info Stader node - Permissioned ETHx Permissioned Stader node audit by SigmaPrime 1 low, 4 info Oracles ETHx Oracles audit by Halborn (June 1) 1 high, 3 low, 8 info Off-Chain ETHx Off-chain audit by Halborn (July 5) 2 medium, 5 low, 4 info
4.1.2 Concerning Audit Signs
Several issues raised by audits that qualified as Medium risk were not resolved by Stader. User funds are not at risk with the medium-risk issues identified. Stader has had comprehensive discussions with their auditors about these matters, and after a thorough review and mutual agreement, have marked these issues as closed:
ETHx Smart Contracts audit by Halborn - Link (July 4)
Audit Finding (HAL-02): Slashing of a validator in the settleFunds() function of the ValidatorWithdrawalVault contract poses a risk of exceeding the actual penalty due. The issue arises in the implementation of the slashValidatorSD() function, where the calculation of sdToSlash relies on the minimum threshold of the pool (poolThreshold.minThreshold) rather than the accurate deficit between operatorShare and penaltyAmount.
It was advised to pass the precise deficit between operatorShare and penaltyAmount to the slashValidatorSD() function and compare it with poolThreshold.minThreshold using Math.min. The issue has been partially solved by the Stader team. They acknowledge the concern and explain that in cases where the penalty surpasses operatorShare, a fixed amount of SD equivalent to 0.4 ETH is deducted. This approach has been effectively communicated to all Node Operators. Importantly, this penalty does not impact the funds staked by users, providing reassurance in the system’s overall integrity.
ETHx Smart Contracts audit by Sigma Prime - Link (June 1)
ETHX2-05 HasEnoughSDCollateral()
Check Is Performed Only Once During Onboarding
A concern was identified regarding the validation of SD token quantity during the onboarding of new validators. The check for sufficient SD collateral occurs only once, within the addValidatorKeys() call. This process, contingent upon the price value during onboarding, allows potential exploitation of price volatility.
The audit flagged this as a Medium severity issue with Low impact but High likelihood. The potential consequence is a compromise in the security offered by SD tokens to users against fraudulent or negligent validators. The fluctuation in the market value of SD collateral over the staking duration could alter stakers’ incentives, potentially making malicious activities more profitable.
The audit team recommended that stakers should pause accruing rewards until they increase the SD collateral amount to pass the hasEnoughSDCollateral() check. The development team, in response, acknoledged the issue with the assurance that when the minimum SD requirement is not met, operators cease getting SD rewards. They believe this is a sufficient motivating factor for operators to maintain the threshold. Importantly, it was clarified that this issue is specific to Node Operators and does not impact Staked ETH.
ETHX2-06 Submit Functions Are Susceptible To Front Running When Trusted Nodes Are Removed A vulnerability was identified in the submit functions, specifically when trusted nodes are removed. The issue revolves around the possibility of front-running when a trusted node is removed using the removeTrustedNode() function. The concern is that, despite removal, the node could still vote on balances, withdrawals, or beaconStateRoots due to the current voting process allowing submissions without a delay period if the reporting block is >= to the current block.number.
The severity is rated as medium with high impact and low likelihood. The recommendation from the testing team suggests introducing a delay before voting begins to prevent malicious entities from voting prior to their removal. The development team, however, closed the issue, asserting that the problem is not applicable in their context. They argue that only approved trusted nodes, which deposit USDC collateral off-chain, are allowed to join. Additionally, trusted nodes are changed in a time-spaced manner to ensure backward compatibility. The development team emphasized that this issue specifically affects the Oracle committee and is unrelated to Staked ETH.
4.1.3 Bug Bounty
Stader has an active bounty program with ImmuneFi offering up to $1 million in rewards to individuals who discover and report bugs and vulnerabilities.
4.1.4 Immutability
All the smart contracts are Proxy Upgradeable.
4.1.5 Developer Activity

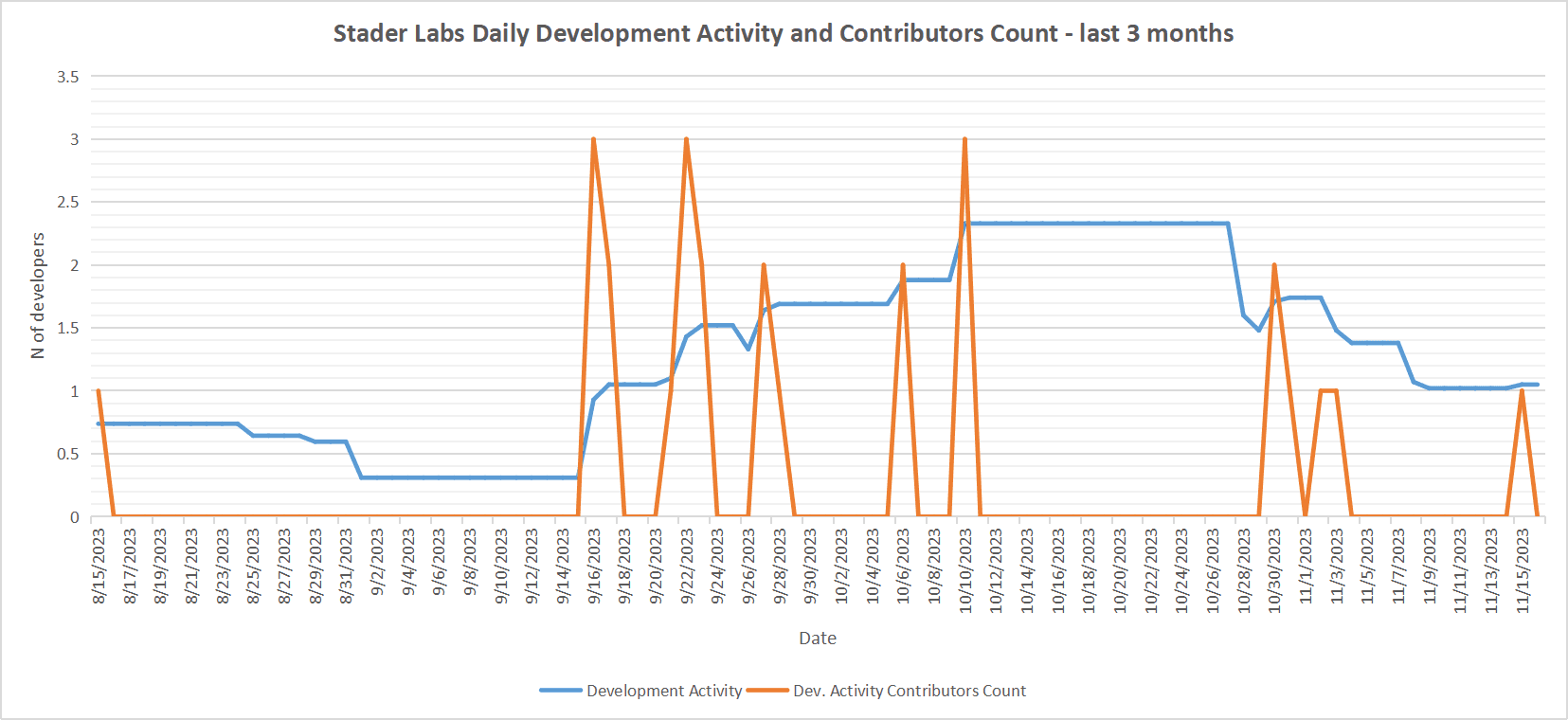

The image below shows development activity and the number of contributors per day over a 3-month period:

Source: Santiment Network | Date: 8/15/2023 to 11/16/2023
4.1.6 SC Maturity
The contracts were deployed to mainnet on 5th of June, 2023 by Strader: Deployer. The first transfer of ETHx took place on that day itself (with an amount of 0.01 ETHx).
4.1.7 Previous Incidents
There have not been any security incidents related to ETHx contracts to date.
4.2 Product and Layer Composability
4.2.1 Dependencies
Due to the division between the Ethereum consensus layer and execution layer, an oracle is required to transmit data about about the state of validators to set the ETHx exchange rate, on/offboard validators, and penalize faulty validators.
Stader makes use of an Oracle Committee composed of whitelisted oracle operators that provide data to ETHx smart contracts. Oracle operators are selected through a rigorous process involving KYC/KYB and assessment of their historical proficiency. Collectively they contribute data to ETHx smart contracts. These operators receive compensation from the Stader treasury for their service and to cover expenses related to maintaining dedicated infrastructure.
Consensus mechanisms such as majority, median, and deviation threshold are employed across Oracle data feeds. They ensure accurate values from multiple independent Oracle node operators. Values are reported to the Stader Oracle Contract.

Source: ETHx Docs
The Oracle Committee monitors essential data including exchange rates, withdrawn validators, missed attestations, and validator statistics. Exchange rates critical for staking and withdrawal processes are updated through consensus mechanisms with inspections ensuring validity.
The Committee oversees withdrawn validators, addressing the prompt distribution of accumulated ETH. For missed attestations, a governance vote determines penalties, emphasizing Staker rewards over Node Operator collateral. Validator statistics, including exit time and balances, guide withdrawals. The Committee addresses potential MEV misappropriation ensuring fair distribution and compensation for Stakers.
Stader has formed a partnership with Chainlink and intends to add Proof of Reserve data feeds to provide further assurances that limit the risk associated with the Oracle Committee.
4.2.2 Withdrawal Processing
Decentralized exchanges provide quick and easy exchange from ETHx to ETH. Meanwhile, ETHx holders can opt for direct redemption through ETHx smart contracts:
Submission of ETHx Tokens: Stakers transfer their ETHx tokens to the UserWithdrawalManager contract in proportion to the expected ETH they want to redeem, based on the current exchange rate quoted by the oracle contract. User requests are queued to be processed in the subsequent steps.
Finalization of Withdrawal Requests: Finalization, a protocol declaration, signals that a user-requested ETH is available to claim. This call operates on a first-come, first-serve basis, with each withdrawal request undergoing a mandatory delay to prevent sandwich attacks and deter malicious behaviors. ETHx tokens are burned, and ETH is moved from the deposit pool to make it available for claiming.
Claiming Process: Once a user request is finalized, the recipient can immediately claim it by initiating a transaction with the ETHx smart contracts. This action sends the ETH back to the recipient’s address, concluding the redemption process.
While this method can provide superior rates compared to DEX, the redemption time varies based on factors such as the requested ETH amount, availability of ETH in the deposit pool, and queue length. Smaller redemptions (<1000 ETH) may conclude in a few hours, while larger ones (>100,000 ETH) can extend to 7-10 days.
The smart contract leverages various sources, including the deposit pool, staking rewards, and released staked ETH from withdrawn validators. Validator exits, managed through a heuristic algorithm considering parameters like exit queue status and anticipated demand, are executed in a permissionless manner. The unstaked ETH from exited validators is then directed to ETHx smart contracts for subsequent redemptions or staking. The UserWithdrawalManager.sol contract plays a key role in this process, holding the burner role for ETHx tokens and managing the permissionless withdrawal methods.
4.3 Oracles Pricefeed Availability
4.3.1 Understanding the Oracle
ETHx pricefeed options recommended by Stader: Chainlink ETHx Price Feed Redstone ETHx Adapter Redstone ETHx Price Feed
ETHx doesn’t have a Chainlink market price feed at this time. They have an oracle contract available that takes the ETH/USD price reported by Chainlink multiplied by the ETHx internal oracle rate. There is an alternative oracle available from Redstone, although this provider has much lower total value staked compared to Chainlink and has less history to assess its reliability.
A potential alternative may involve the Curve EMA oracle built into the Curve ETHx/ETH pool. The pool implementation uses a stableswap pair with naked ETH and is not the latest implementation available. Curve has been making incremental upgrades to its stableswap pools with the introduction recently of stablewap-ng. This implementation has an improved EMA oracle and support for tokens with internal rate oracles. Furthermore, Curve is recommending projects move away from pools paired with naked ETH.
ETHx already has a sizable amount of liquidity in its Curve pools to ensure the EMA in not manipulable (over $10m TVL). The EMA time is currently over 1 hour, which may be too slow to reliably process liquidations. The EMA should be set to a value that balances rapid response to spot price with manipulation resistance. The oracle should be designed with guardrails in place and should undergo an audit before acceptance as a suitable oracle. Furthermore, precautions should be taken to fully understand the Curve EMA oracle for the specific pool being used. A recent implementation introduced a bug to the Curve pool oracles, which is being rectified and Curve has clarified that current stableswap oracles are safe.
4.3.2 Token Liquidity and Distribution
Liquidity for Stader liquid staking token ETHx, is found on Decentralized Exchanges (DEXs), including Curve, Pancakeswap, and Uniswap. The majority of DEX liquidity is in the Curve ETHx/ETH and Curve ETHx/wstETH pools.

Source: Etherscan | Date: 11/22/2023
The combined TVL in the Curve pools is over $25m. In the past month, liquidity overall has greatly expanded from $4m to over $17m in available ETHx liquidity.

Source: Dex.guru | Date: 10/23/2023 - 11/22/2023
There is a relatively high concentration of ETHx in Curve pools, increasing dependence on the Curve pool’s reliable operation. Bugs or other issues related to Curve pools may have a severely detrimental effect on available ETHx liquidity.
Section 5 Counterparty Risk
This section addresses the persistence of ETHx’s properties from an ownership rights perspective (i.e. possession, use, transfer, exclusion, profiteering, control, legal claim). The reader should get a clear idea of (1) who can legitimately change properties of the collateral (e.g. minting additional units) and what their reputation is, (2) the extent that changes can be implemented and the effect on the collateral.
This section is divided into 4 subsections:
5.1: Governance
5.2: Decentralization of the LSD
5.3: Economic Performance
5.4: Legal
5.1 Governance
5.1.1 Governance Scope
There exists an implicit trust assumption in Stader team to operate the protocol responsibly and to respect outcomes determined on Snapshot voting, as governance is currently conducted off-chain and managed by the Stader multisig. Governance discussions take place on the Community Forum before going to a vote. SD token holders have proportional governance power within the system.
The system contracts are fully upgradeable proxies. Governance also sets privileged roles in the system, including contracts ownership roles, the operator role, the Oracle Committee membership, and whitelisting permissioned node operators. Governance can update parameters in the system and allocate the DAO Treasury.
5.1.2 Access Control
The Community multisig

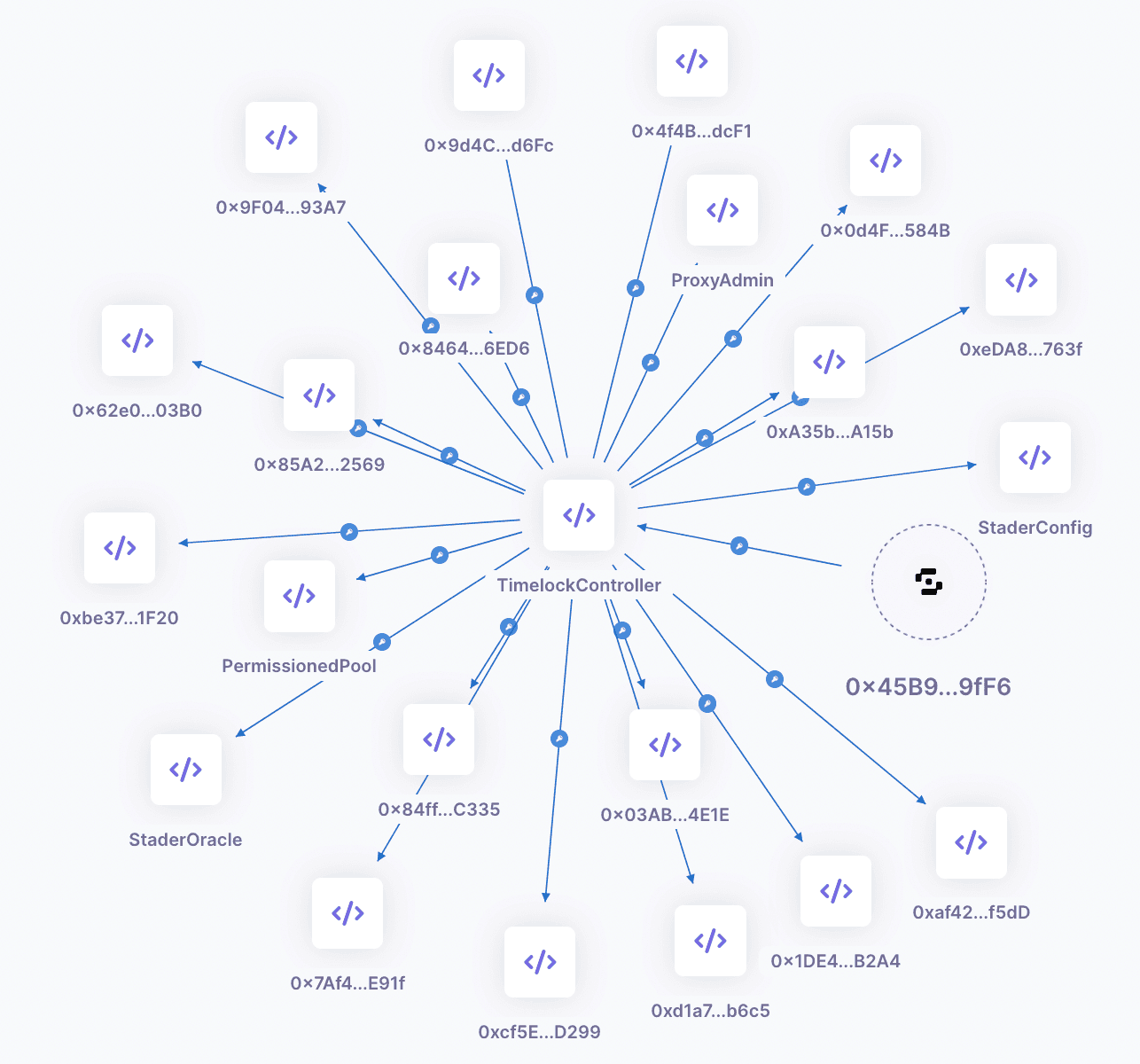

The 6-of-9 Community multisig has the potential to unpause and upgrade contracts via a timelock set with a minimum delay of 7 days. The community multisig also can rotate the Manager and Operator addresses.
Members include:
Mark Zeller: Active ETH community member. Member at Aave DAO
DefiDad: Active Web3 community member
Ignacio Iglesias Castreño: Co-founder at Stakely, blockchain network infrastructure provider
Edouard Lavidalle: Co-founder at Stakin, blockchain network infrastructure provider
Pratik Agarwal: Accel Partners, Global VC fund
Richard Galvin: CEO at Digital Asset Capital Management
Steven Shi: Investment Partner at Amber Group
Matt Batsinelas: Founder at Glass Markets
Amitej Gajjala: Member at Stader DAO

Source: Pod.xyz
The Manager multisig

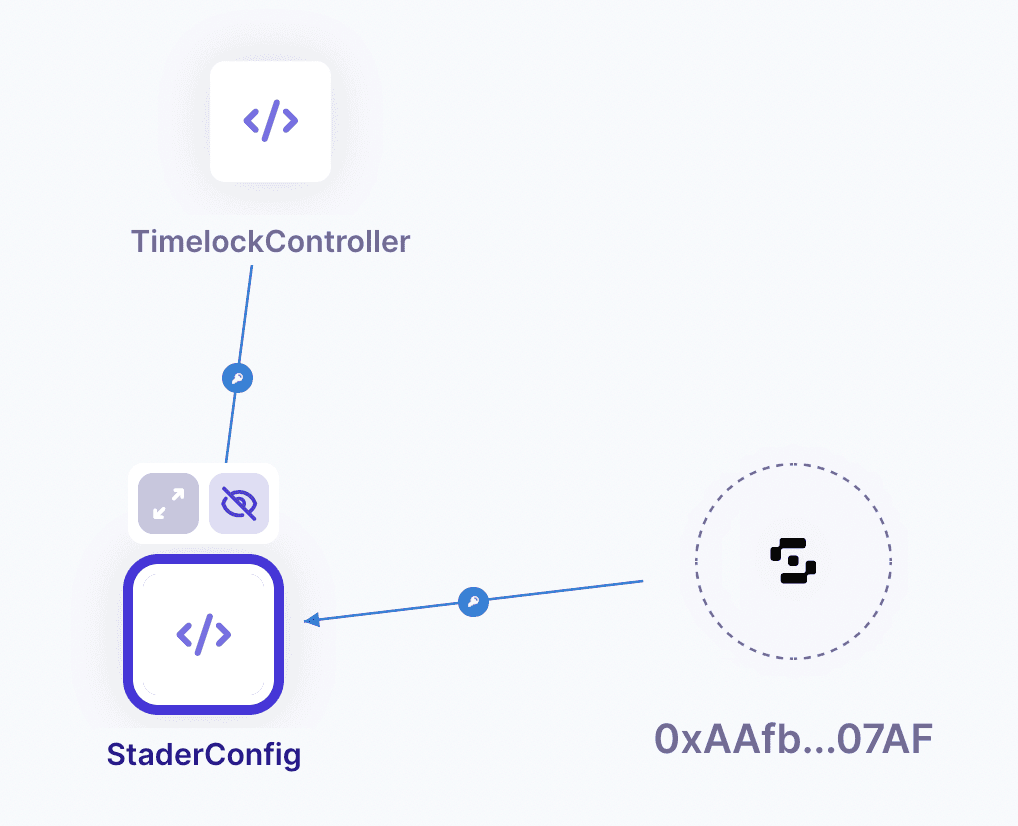

The 3-of-5 Manager multisig is in charge of maintaining the protocol’s overall health. It can pause contracts and adjust associated configuration parameters. It has the manager and operator roles on the StaderConfig contract. This multisig is expected to be used infrequently.

Source: Pod.xyz
The Operator
The Stader team controls the Operator role, and its primary responsibilities include overseeing the health of the ETHx node operator network, distributing rewards, implementing node configuration changes and managing validator exits. This address is an EOA. It can:
Distribute rewards.
Update max count of node operators permissible to run nodes.
Update max count of Validator keys addable in a tx.
Update max count of verified keys addable in a tx.
Update max count of validators that can get 32 ETH deposits in a tx.
Update list of validators to be exited
The Oracle Committee
A Snapshot vote in June approved an initial Oracle Committee. The manage critical operations involving data transmission between the consensus and execution layer, including handling deposits, withdrawals, and rewards distribution. Its responsibilities include:
- Provide ETHx:ETH exchange rate based on ETH staked in the system.
- Provide a list of ETHx validators that have exited to distribute ETH to various stakeholders.
- Penalize node operators for missing attestations based on a governance vote decision.
- Provide statistics about ETH balances of slashed validators, validators in the exit queue, and latest validators withdrawn to compute validator exit times.
- Provide data validator quantity and attestations performed to inform reward distribution of execution layer ETH and SD for operators participating in the socializing reward contracts.
- Provide a 24-hour TWAP SD price to ensure permissionless node operators are adequately collateralized.
- Monitor and report MEV misappropriation by node operators, which can result in slashin node operator collateral.
The Committee consists of 7 members: - 4 permissioned node operators (Stakin, Cryptomanufaktur, Kiln, Stakely.io)
- 1 prominent ETH community member (Mark Zeller)
- 2 Stader team members, one of which is planned to transition over to a community member
Together, these entities form a governance structure that oversees decision-making & operations in the ETHx ecosystem. Their collective efforts prioritize transparency, accountability, and a careful balance of oversight, control and flexibility.
5.1.3 Distribution of Governance Tokens

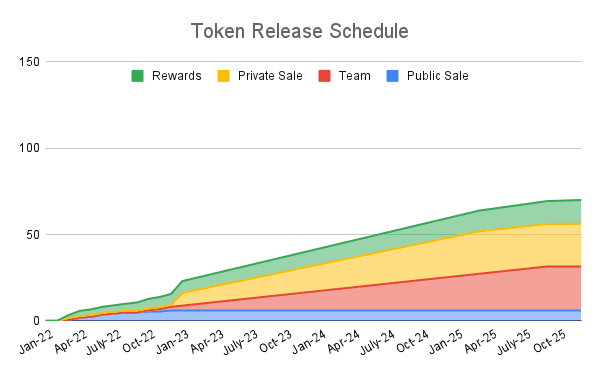

Team and Advisor tokens were allocated with a 6 month cliff and 36 month linear vest. Likewise, Team and Advisor tokens were subject to a 36 month linear vest after the TGE.

Source: Stader Labs Site
The Ecosystem and DAO Fund are reserved as incentives for supplying liquidity to the SD token and on DEXs and intended to remain out of circulation until allocated. This may be a determination of governance.

Source: Stader Labs Site

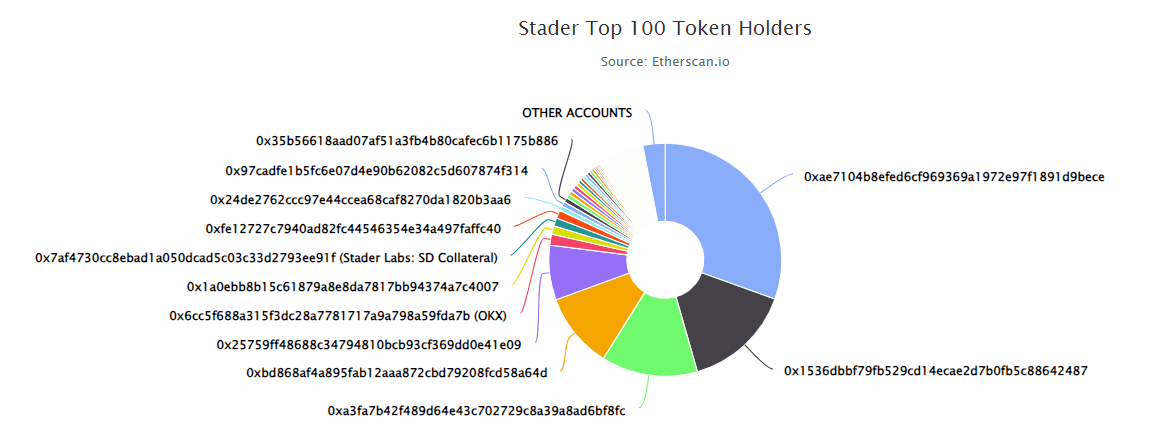

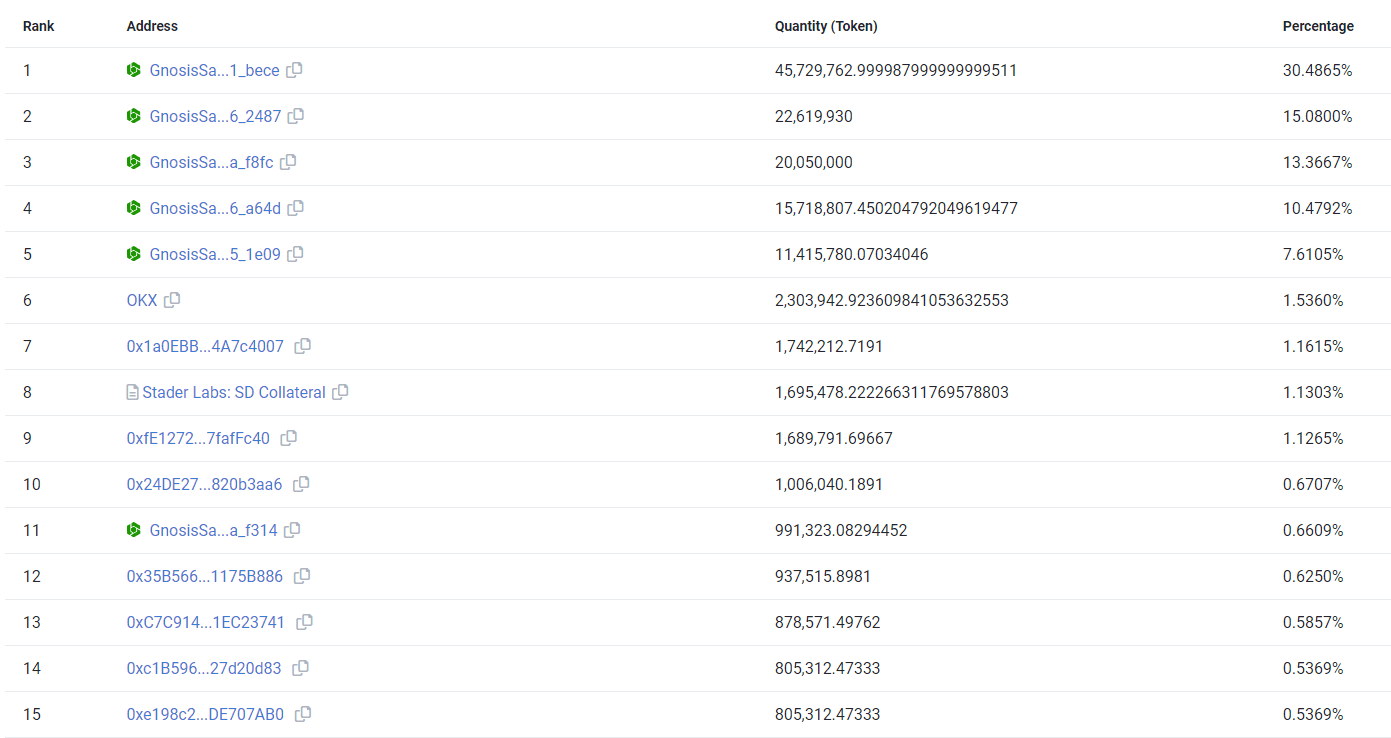

According to Etherscan data, ~75% of SD tokens are distributed between 5 wallets, all gnosis multisigs. There are the following safes associated with Stader protocol:
1. Rewards wallet
2. DAO fund
3. Ecosystem fund
4. Team tokens
These tokens are not vested.

Source: Etherscan - ETHx Holders | Date: 11/14/2023

Source: Etherscan - ETHx Holders | Date: 11/14/2023
5.1.4 Proposals Frequency
The Stader Snapshot is active with a frequency of 0-3 proposals per month. All proposals are overwhelmingly in support, with very few against votes. An overview of historical proposals is below:
Sr Title Start start End end For Against Votes Voters State 1 Adding A41 to the Permissioned Node Operator set 11/13/2023 1699861226 11/17/2023 1,700,206,826.00 1,610,050.15 0.00 1,610,050 29 active 2 Sunset Fantom, Near and Terra 2.0 liquid staking service 11/1/2023 1698836082 11/5/2023 1,699,181,682.00 1,258,243.62 24.24 1,258,268 29 closed 3 ETHx Smart Contract Upgrade 9/26/2023 1695717104 9/30/2023 1,696,062,704.00 1,503,042.91 0.00 1,503,043 34 closed 4 Unlock voting power for SD bonded as collateral 8/25/2023 1692982403 8/29/2023 1,693,328,003.00 1,002,694.10 6.52 1,002,701 25 closed 5 Migrate rewards from Balancer SD<>ETH 80/20 Pool to SD<>ETHx 80/20 Pool 8/16/2023 1692189999 8/20/2023 1,692,535,599.00 1,009,159.42 0.00 1,009,159 28 closed 6 Stader DAO Delegate Program - Cohort 2 7/4/2023 1688502300 7/8/2023 1,688,847,900.00 1,529,732.20 0.00 1,529,732 23 closed 7 Stader DAO Treasury Diversification & Active Management 7/4/2023 1688465700 7/8/2023 1,688,811,300.00 1,329,799.59 0.00 1,329,800 23 closed 8 Enable governance for SD tokens on other EVM chains and on major LP positions 7/4/2023 1688465400 7/8/2023 1,688,811,000.00 1,229,367.85 100,261.26 1,329,629 21 closed 9 ETHx Oracle Node Operators (ONOs) Genesis Committee 6/17/2023 1686971129 6/21/2023 1,687,316,729.00 1,429,010.40 263.00 1,429,273 29 closed 10 Stader DAO Delegate Program - Cohort 1 6/1/2023 1685656000 6/5/2023 1,686,001,600.00 1,348,025.30 0.00 1,348,025 24 closed 11 EthX Permissioned NO Vote Proposal 5/12/2023 1683895029 5/16/2023 1,684,240,629.00 1,328,204.54 2,753.89 1,330,958 22 closed 12 DAO and Ecosystem Fund Committee 5/6/2023 1683385921 5/13/2023 1,683,990,721.00 1,580,782.62 0.00 1,580,783 30 closed 13 Glass Markets should receive 250K SD delegation from Stader DAO Fund 4/10/2023 1681114372 4/17/2023 1,681,719,172.00 2,070,724.05 0.00 2,070,724 41 closed 14 Commission for staking on BNB Chain 1/17/2023 1673976607 1/24/2023 1,674,581,407.00 2,865,806.54 61.90 2,865,868 43 closed 15 5% commission for staking on Near 1/3/2023 1672747083 1/10/2023 1,673,351,883.00 2,853,147.84 4,346.63 2,857,494 27 closed
Source: StaderDAO Snapshot
5.1.5 Participation
As per the above image/table, there are an average 29 voters and an average of 1.6 million SD votes across all the proposals so far.

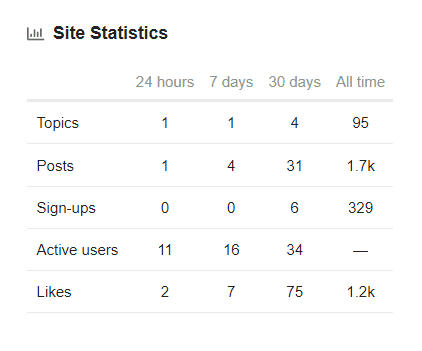

The Governance Forum statistics show 34 monthly active users and 16 weekly active users:

Source: Stader Governance Forum
5.1.6 Governance Attack Vectors
As of now, all snapshot vote decisions are carried out by the multisig. Further operational controls are managed by a team-controlled EOA (the Operator) and the Oracle Committee. With this underlying trust assumption, external governance manipulation is not possible.
5.2 Decentralization of the LSD
5.2.1 Number of Node Operators & Total Number of Validators
There are a total of 189 Node operators of which 6 are permissioned and 183 are permissionless node operators as of 15th November 2023.
There are 1016 validators of which 503 are permissioned validators (150 queued permissioneless validators) and 782 are permissionless validators (53 queued permissionless validators) as of 15th November 2023.
ETHx shows potential to become a formidable competitor in the LSD market, although it is a relatively new product compared to others we have reviewed. Because of its short history, we recommend to exercise caution with onboarding. In particular, Stader has been working to strengthen ETHx’s liquidity profile. It has been showing positive growth trends, but liquidity metrics should be closely monitored to ensure liquidity remains strong across various market conditions.
An immediate blocker to overcome before considering onboarding ETHx is to establish a reliable pricefeed that accounts for the market price of ETHx. Currently, a contract is available that combines Chainlink ETH/USD with the internal ETHx rate and RedStone also has an ETHx pricefeed available. We recommend to use Chainlink ETH/USD combined with an onchain ETHx/ETH data source to establish the ETHx market price. This may require Stader to consult with Curve developers on properly integrating the Curve pool EMA oracle and to migrate liquidity to the latest Curve stableswap-ng implementation. This solution also depends on Stader ensuring the pool has sufficient liquidity of at least $10m total TVL.
Most concerns we have around ETHx as collateral stem from its short history. Its TVL is still quite low and because of uncertainties due to maturity level of the contracts and short market history, a conservative approach to onboarding in advised. Despite concerns, ETHx shows a commitment to security, to continuing a trajectory of a strong liquidity profile, and has a plausible pathway to decentralization. It is furthermore a product that introduces unique design features like a multi-pool architecture. ETHx certainly has potential to become a valued addition to a diversified basket of LSD collateral types.
